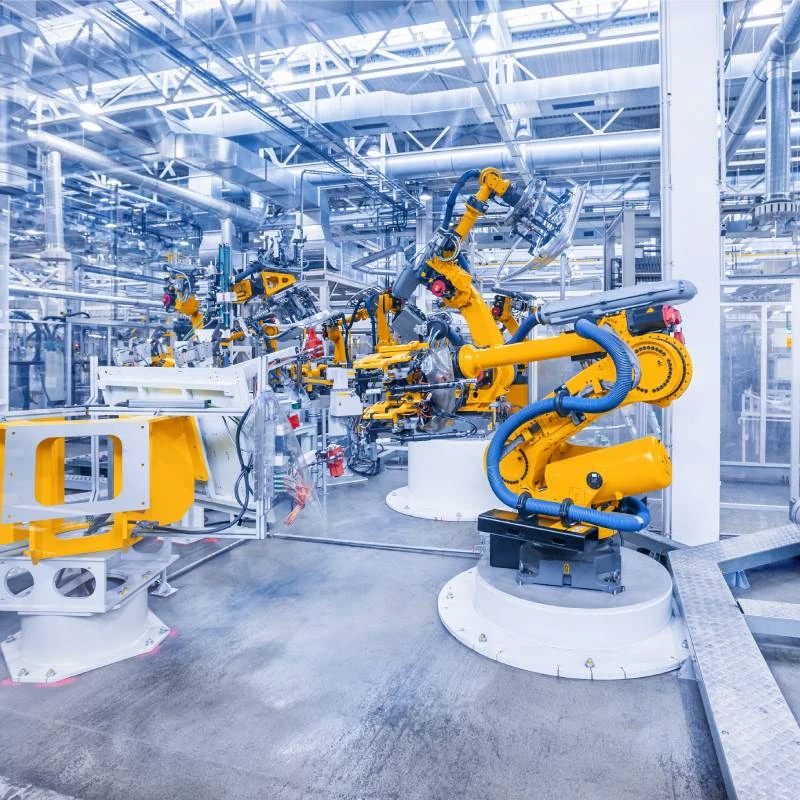

A February 2022 industry overview linked the growth of industrial IoT, collaborative robots, Ethernet, sensors, and automated equipment with greater demand for power, signal, and data interconnects. It used FANUC and ABB robot examples and discussed products from TE Connectivity, Belden, Fischer, and HARTING.
The named robot specifications, vendor portfolios, product ratings, and development plans were descriptions available at that time. They are not current ordering information or proof that one brand is best. A reliable robot interconnect architecture starts with motion, environment, data, power, safety, maintenance, and installation requirements.
Map the complete robot connection system
A robot may need motor power, brake power, encoder feedback, safety circuits, sensors, cameras, industrial Ethernet, fieldbus, grounding, and auxiliary tooling interfaces. Internal joints, dress packs, tool changers, base connectors, control cabinets, and external factory links have different constraints.
Define voltage, current, protocol, data rate, latency, shielding, motion, bend radius, torsion, mating cycles, service access, and failure consequence for each link. A hybrid connector can reduce interfaces but may concentrate electrical, thermal, and repair risk.
Protected cabinet versus exposed machine
The 2022 overview contrasted connections inside protected enclosures with exposed industrial interfaces. An IP20-style cabinet connection may be appropriate where the enclosure controls dust and liquids. A machine-side interface may need protection against dust, oil, coolant, washdown, condensation, or temporary immersion.
An IP rating addresses defined ingress tests; it does not by itself prove chemical compatibility, corrosion resistance, UV stability, pressure washing, vibration, or long-term sealing. Review housing, seal, cable jacket, overmold, panel gasket, mating condition, and installation torque as one barrier.
Use MICE as an environmental conversation
The article discussed the MICE framework: mechanical, ingress, climatic and chemical, and electromagnetic severity. It associated cleaner protected environments with lower levels and severe factory exposure with higher levels. Exact classifications should follow the applicable cabling and equipment standards used by the project.
MICE is useful because it prevents a narrow focus on water resistance. A connection can pass an ingress test and still fail from vibration, fretting, temperature cycling, oil attack, or electromagnetic noise. Document each stress and its test evidence.
Ethernet performance depends on installation
Industrial Ethernet may connect robots to cabinets, controllers to machines, and PLCs to sensors, cameras, and actuators. RJ45, M12, and other interfaces can serve different protected or exposed zones. Protocol and channel requirements determine category, pair count, shielding, impedance, insertion loss, return loss, crosstalk, and reach.
The overview highlighted connector termination as a weak point and described field-installable solutions. Field installation can reduce cable inventory and simplify routing, but performance depends on stripping, pair untwist, shield termination, conductor seating, tool condition, inspection, and installer training. Validate assemblies made by representative technicians.
Single-pair Ethernet requires system planning
The 2022 article described single-pair Ethernet as a way to reduce cable size and mass for some devices and cited an M8 concept with additional power contacts. Those statements were vendor and trend descriptions at the time. Current protocol, power, connector, cable, and standard compatibility must be verified.
Smaller cable can improve robot motion, but conductor resistance, voltage drop, temperature rise, EMC, topology, and fault behavior remain important. Migration plans should include switches, PHYs, diagnostics, tools, and spare parts, not only connectors.
Flexible cable is not defined by softness
Robot cable may bend repeatedly, twist through joints, accelerate, and rub against guides. Specify flex type, bend radius, torsion angle, cycle count, speed, acceleration, temperature, and bundle configuration. A cable rated for continuous flex in a drag chain may not be rated for torsion.
Connector termination must prevent movement from reaching contacts. Review strain relief, clamp, overmold, shield transition, conductor fatigue, and dress-pack routing. Test the complete cable assembly under representative combined motion and electrical load.
Shielding needs a complete path
Motors, drives, welding, switching supplies, and contactors create electromagnetic noise. A 360-degree shield termination can reduce impedance compared with a long pigtail, but shell bonding, panel preparation, cable braid, PCB reference, and grounding determine system performance.
Measure communications during motor operation, braking, welding, and fault conditions. Verify electrostatic discharge, fast transient, surge, and radio-frequency immunity where applicable. Continuity alone does not demonstrate data-channel margin.
Keep safety functions identifiable
Emergency stop, protective stop, enabling, brake, and other safety-related circuits should follow the machine's safety architecture and validation plan. Keying, coding, separation, diagnostics, and controlled replacement can help prevent misconnections. A connector rating alone does not establish functional safety; the complete circuit, diagnostics, software, failure assumptions, and verification determine whether the required risk reduction is achieved.
A selection and validation workflow
- Map every internal, moving, tool, cabinet, and factory-network connection.
- Define electrical, protocol, motion, environmental, safety, and service requirements.
- Select connector, cable, termination, shielding, keying, and mounting as an assembly.
- Build production-representative harnesses and field terminations.
- Test electrical margin, motion, vibration, temperature, ingress, fluids, EMC, and mating life.
- Validate installation, torque, routing, inspection, diagnostics, replacement, and repair.
- Control materials, plating, cable, tooling, site, firmware, and process changes.
Useful product-family starting points
For rugged data connections, review WLconnectivity M12 data connectors. For integrated moving assemblies, the wire-harness and cable-assembly overview can support early architecture work before robot-specific qualification.
The 2022 overview correctly emphasized miniaturization, reliability, ruggedness, flexibility, usability, and installation. The best connector is the one whose complete cable and system evidence matches the robot's real zone, motion, network, and maintenance plan.
