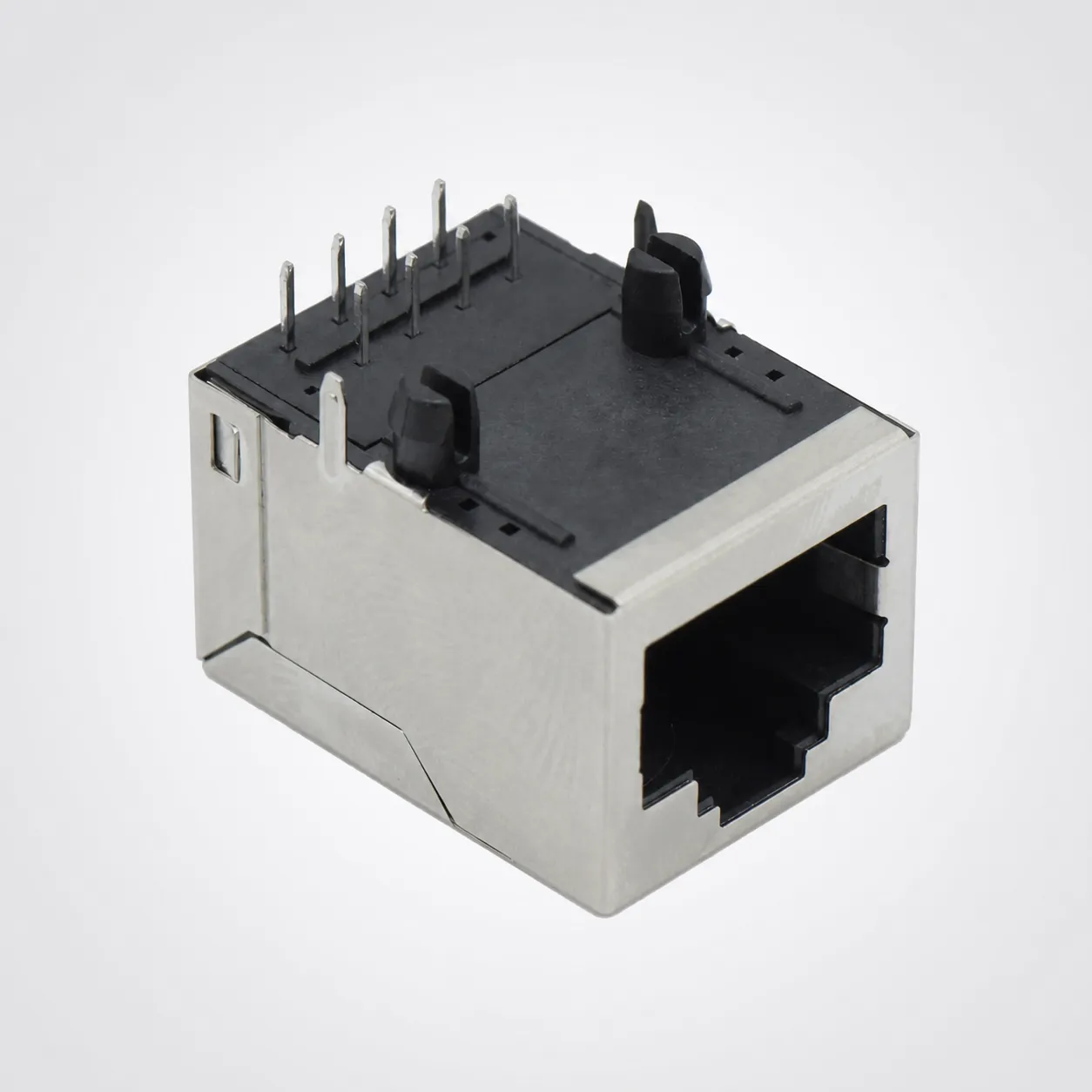

The WLR4F9-0811A2009 is a shielded 8P8C RJ45 female connector designed for 90° right-angle through-hole PCB mounting. It integrates an Ethernet transformer for 100 Mbps network applications and features a fully enclosed shield, two through-hole shell mounting tabs, no indicator LEDs, gold-flash-plated copper-alloy contacts, a nickel-plated copper-alloy shell, and a black UL94 V-0 LCP insulator.
By integrating the RJ45 interface and Ethernet magnetics into one PCB-mounted component, it helps simplify network-port design while reducing the number of external components required on the circuit board.
Application
Suitable for industrial control boards, network servers, routers, hubs, Ethernet switches, personal computers, network printers, communication equipment, data-acquisition systems, and other devices requiring a compact 100 Mbps Ethernet interface.
| Part Number | WLR4F9-0811A2009 |
| Product Category | RJ45 Connector |
| Interface Configuration | 8P8C |
| Gender | Female |
| Connector Style | Shielded RJ45 Receptacle with Integrated Magnetics |
| Data Rate | 100 Mbps |
| Integrated Magnetics | Yes, Integrated Transformer |
| Indicator LEDs | No |
| Mounting Structure | Single-Layer DIP |
| Mounting Method | Through-Hole PCB Mount |
| Mounting Orientation | 90° Right-Angle |
| Termination Type | DIP |
| Number of Contacts | 8 Pins |
| Row Configuration | Single Row |
| PCB Retention | Two Through-Hole Shell Mounting Tabs |
| Shield Style | Fully Enclosed |
| Insulator Material | LCP |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash |
| Shell / Solder Tab Material | Copper Alloy |
| Shell Plating | Nickel |
| Rated Current | 1.5 A |
| Rated Voltage | 125 V |
| Operating Temperature | -40°C to +85°C |
