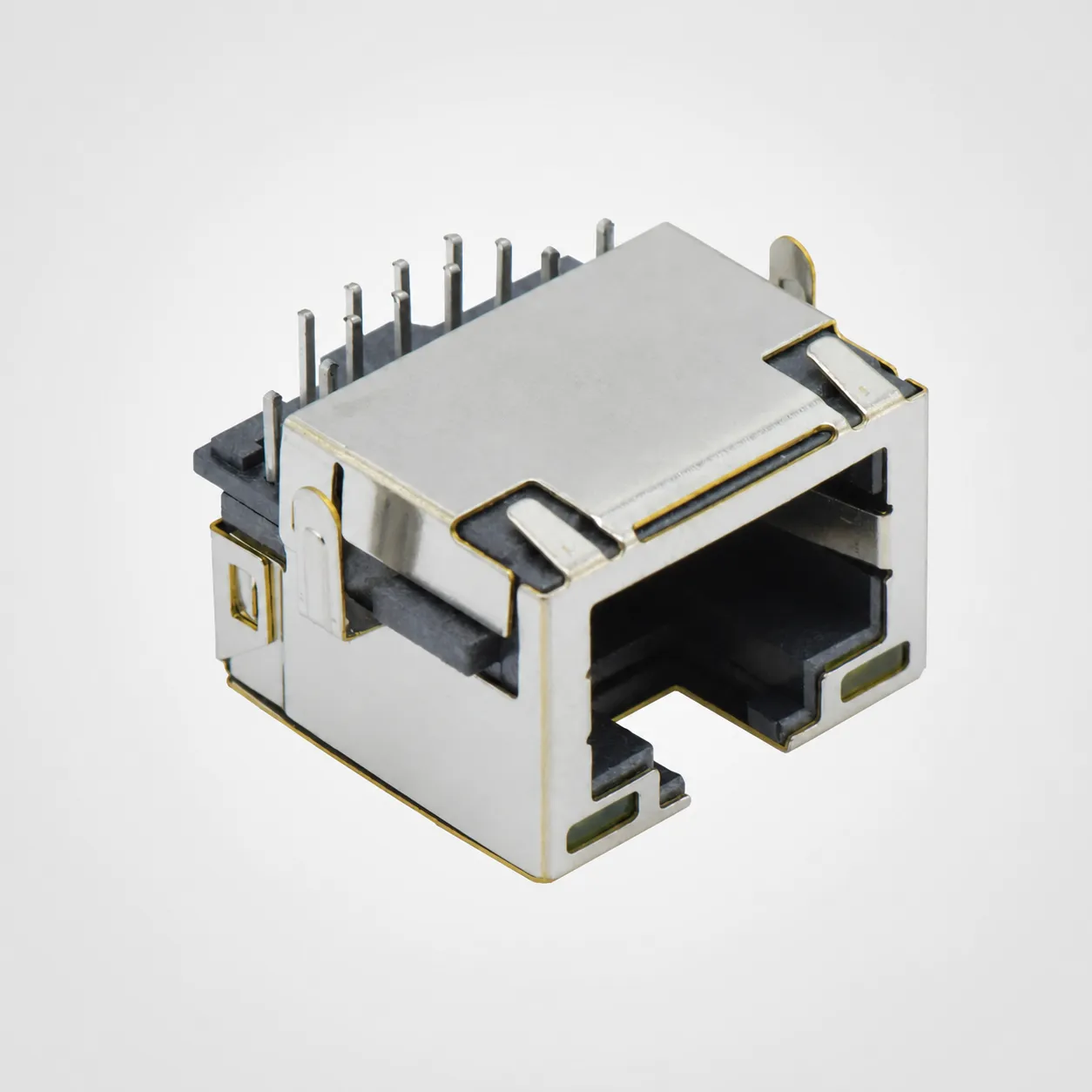

The WLR4F9-0881A1031 is a shielded 8P8C RJ45 female receptacle designed for 90° right-angle, 3.0 mm mid-mount through-hole PCB installation. It features a fully enclosed metal shield, integrated status LEDs with a yellow LED on the left and a green LED on the right, copper-alloy contacts with selective gold-flash and tin plating, a nickel-plated copper-alloy shell, and a black UL94 V-0 LCP insulator.
Its recessed mounting structure helps reduce the connector height above the PCB while maintaining a secure, shielded Ethernet interface.
Application
Suitable for industrial control boards, network servers, routers, hubs, personal computers, Ethernet switches, network printers, communication equipment, and other devices requiring a compact shielded RJ45 interface with visual link and activity indication.
| Part Number | WLR4F9-0881A1031 |
| Product Category | RJ45 Connector |
| Interface Configuration | 8P8C |
| Gender | Female |
| Connector Style | Shielded Mid-Mount RJ45 Receptacle |
| Mounting Structure | Single-Layer 3.0 mm Mid-Mount DIP |
| Mounting Method | Through-Hole PCB Mount |
| Mounting Orientation | 90° Right-Angle |
| Termination Type | Mid-Mount DIP |
| Number of Contacts | 8 Pins |
| Row Configuration | Single Row |
| Mounting Depth | 3.0 mm |
| Shield Style | Fully Enclosed |
| LED Configuration | Left Yellow / Right Green |
| Insulator Material | LCP |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold Flash and Tin |
| Shell / Solder Tab Material | Copper Alloy |
| Shell Plating | Nickel |
| Rated Current | 1.5 A |
| Rated Voltage | 125 V |
| Operating Temperature | -40°C to +85°C |
