DB-25 Male Straight Solder-Wire D-Sub Connector ｜ WLDBM0-2541AA020

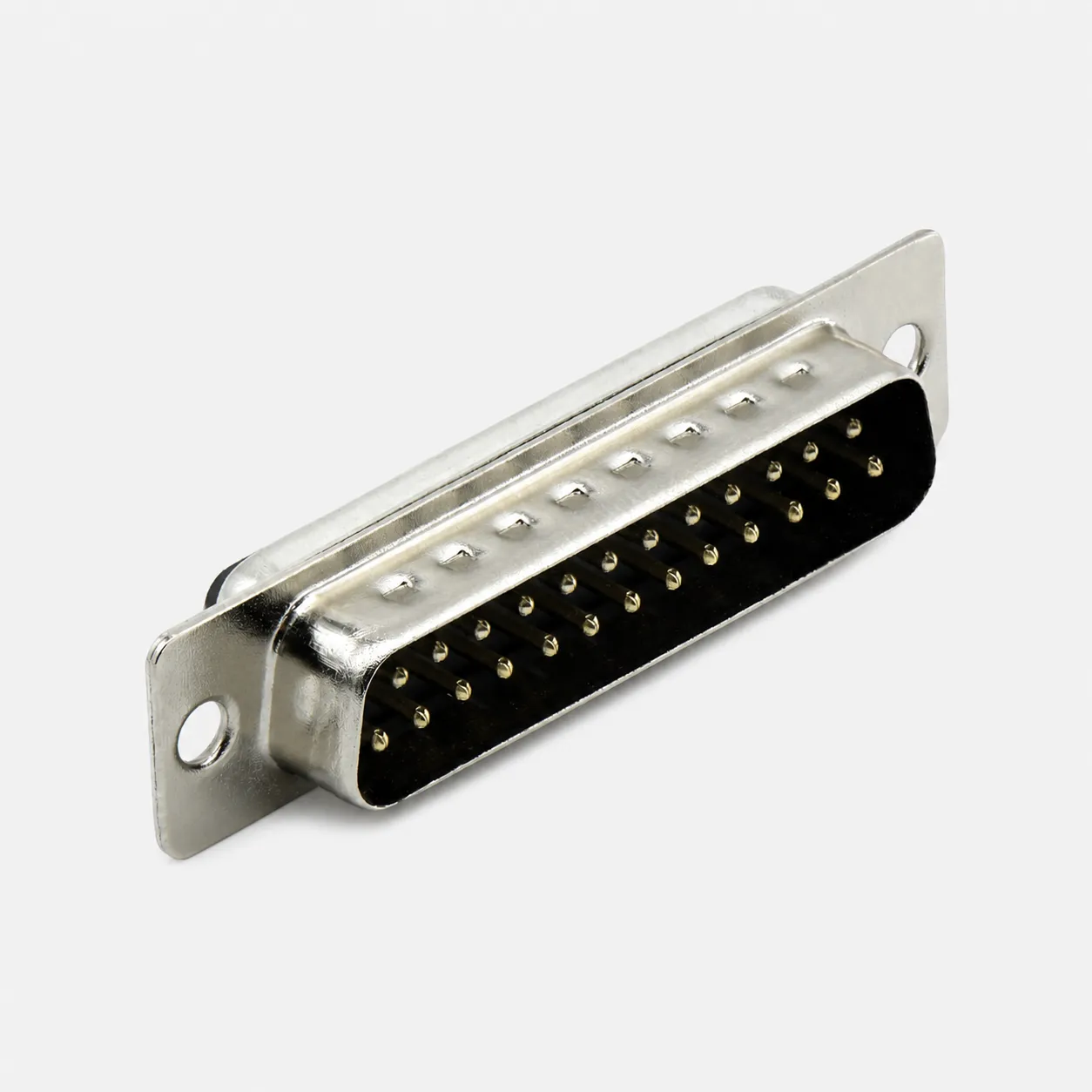

The WLDBM0-2541AA020 is a DB-25 male D-Sub connector with 25 contacts arranged in two rows and a straight 180° solder-wire termination configuration. It features gold-flash-plated copper-alloy contacts, a nickel-plated SPCC steel shell, and a black UL94 V-0 PBT insulator.
Application
Suitable for industrial control systems, factory automation equipment, electronic instruments, communication equipment, data acquisition devices, and other applications requiring a stable 25-circuit wire-terminated D-Sub interface.
Key Features
| Part Number | WLDBM0-2541AA020 |
| Product Category | D-Sub Connector |
| Shell Size / Layout | DB-25 |
| Gender | Male / Plug |
| Number of Contacts | 25 Pins |
| Row Configuration | Dual Row |
| Orientation | 180° Straight |
| Termination Type | Solder-Wire |
| Insulator Material | PBT |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash (G/F) |
| Shell Material | SPCC Cold-Rolled Steel |
| Shell Plating | Nickel |
| Rated Current | 3 A |
| Rated Voltage | 250 V |
| Operating Temperature | -55°C to +105°C |
