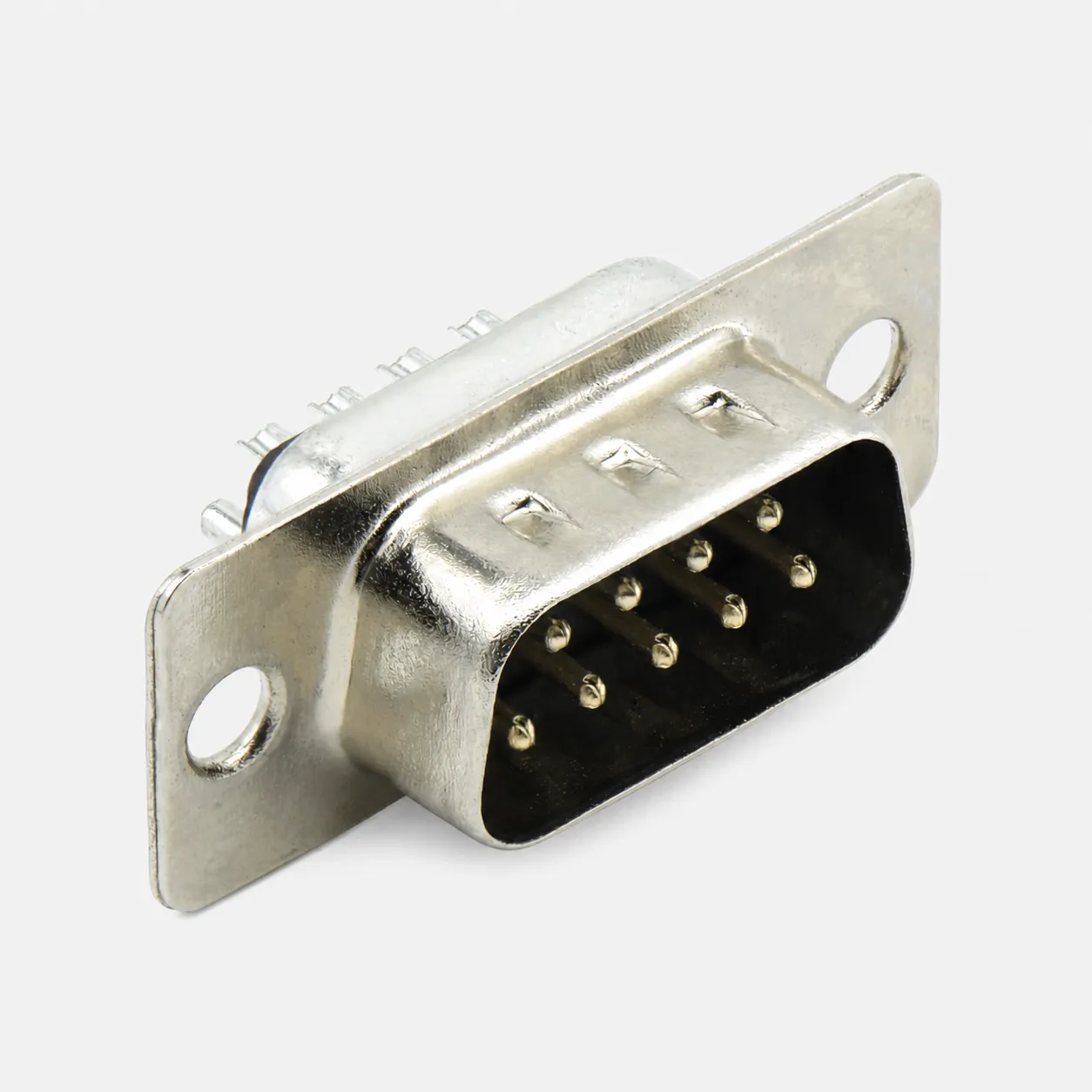

DE-9 Male Straight Solder-Wire D-Sub Connector ｜ WLDBM0-0941AA016
The WLDBM0-0941AA016 is a 9-contact, two-row male D-Sub connector with a straight 180° solder-wire termination configuration. It features gold-flash-plated copper-alloy contacts, a nickel-plated SPCC steel shell, and a black UL94 V-0 PBT insulator.
The source title also includes the designation “48H,” but does not define its test method or meaning.
Application
Suitable for industrial control systems, factory automation equipment, electronic instruments, communication equipment, serial-interface equipment, data acquisition devices, and other applications requiring a compact 9-circuit wire-terminated D-Sub interface.
Key Features
| Part Number | WLDBM0-0941AA016 |
| Product Category | D-Sub Connector |
| Connector Format | DE-9 |
| Manufacturer Type | DB |
| Gender | Male / Plug |
| Number of Contacts | 9 Pins |
| Contact Arrangement | Dual Row |
| Orientation | 180° Straight |
| Termination Type | Solder-Wire |
| Insulator Material | PBT |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash (G/F) |
| Shell Material | SPCC Cold-Rolled Steel |
| Shell Plating | Nickel |
| Additional Source Designation | 48H |
| Rated Current | 3 A |
| Rated Voltage | 250 V |
| Operating Temperature | -55°C to +105°C |
