HD-15 Female Vertical DIP High-Density D-Sub Connector ｜ WLDBF0-1511AC051

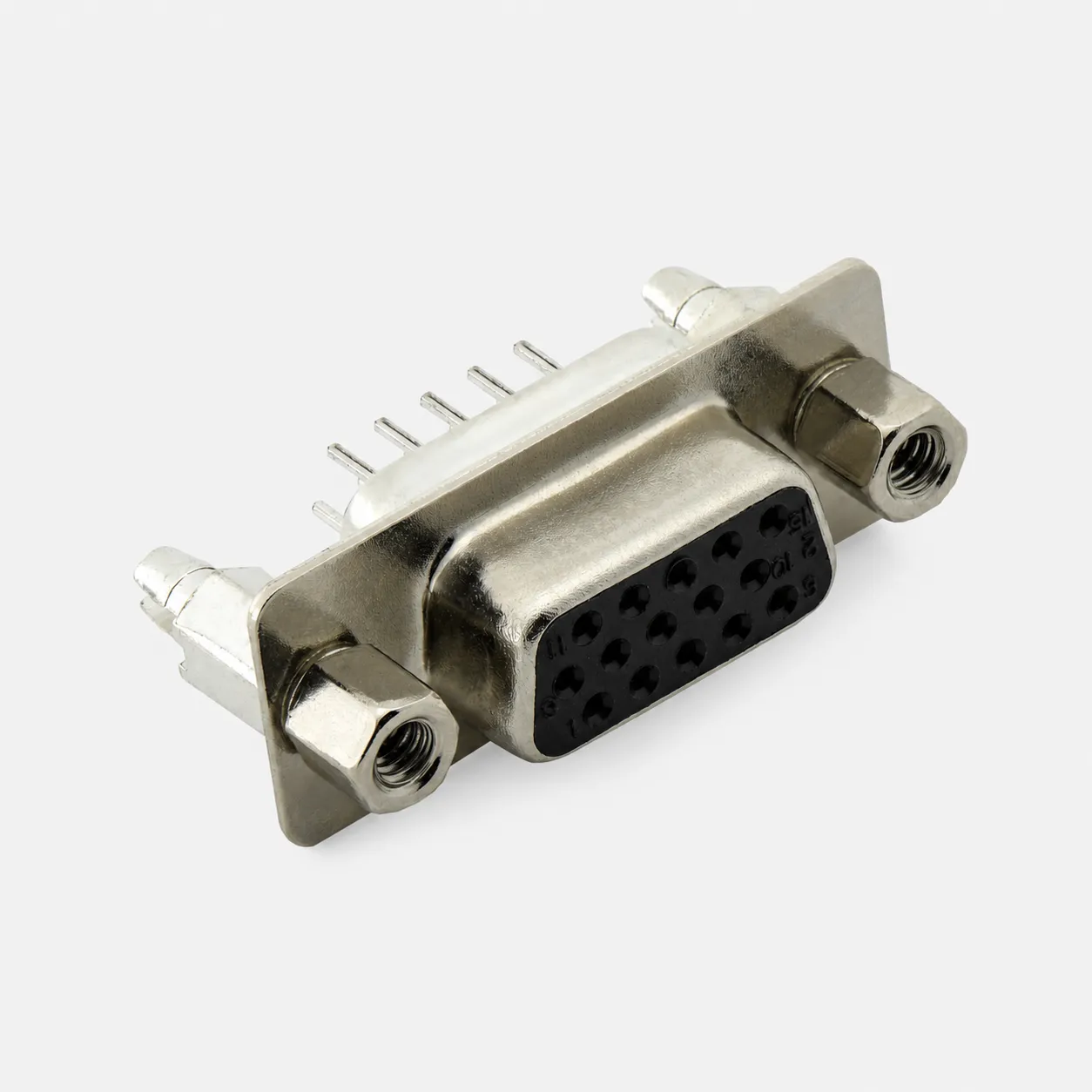

The WLDBF0-1511AC051 is a 15-position, three-row high-density female D-Sub receptacle designed for straight 180° through-hole PCB mounting. It features front-riveted 4.8 mounting nuts, rear-riveted 6.0 forked board locks, gold-flash-plated copper-alloy contacts, a nickel-plated SPCC steel shell and board-lock structure, and a black UL94 V-0 PBT insulator.
Application
Suitable for industrial control boards, factory automation equipment, electronic instruments, display and communication equipment, data acquisition devices, and other applications requiring a compact 15-circuit high-density D-Sub interface.
Key Features
| Part Number | WLDBF0-1511AC051 |
| Product Category | High-Density D-Sub Connector |
| Connector Format | HD-15 |
| Manufacturer Type | HDP |
| Gender | Female / Receptacle |
| Number of Positions | 15 |
| Contact Arrangement | Three Rows |
| Mounting Orientation | 180° Straight / Vertical |
| Termination Type | DIP Through-Hole |
| Front Hardware | Riveted 4.8 Mounting Nuts |
| Rear PCB Retention | Riveted 6.0 Forked Board Locks |
| Insulator Material | PBT |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash (G/F) |
| Shell/Board-Lock Material | SPCC Cold-Rolled Steel |
| Shell/Board-Lock Plating | Nickel |
| Rated Current | 3 A |
| Rated Voltage | 250 V |
| Operating Temperature | -55°C to +105°C |
