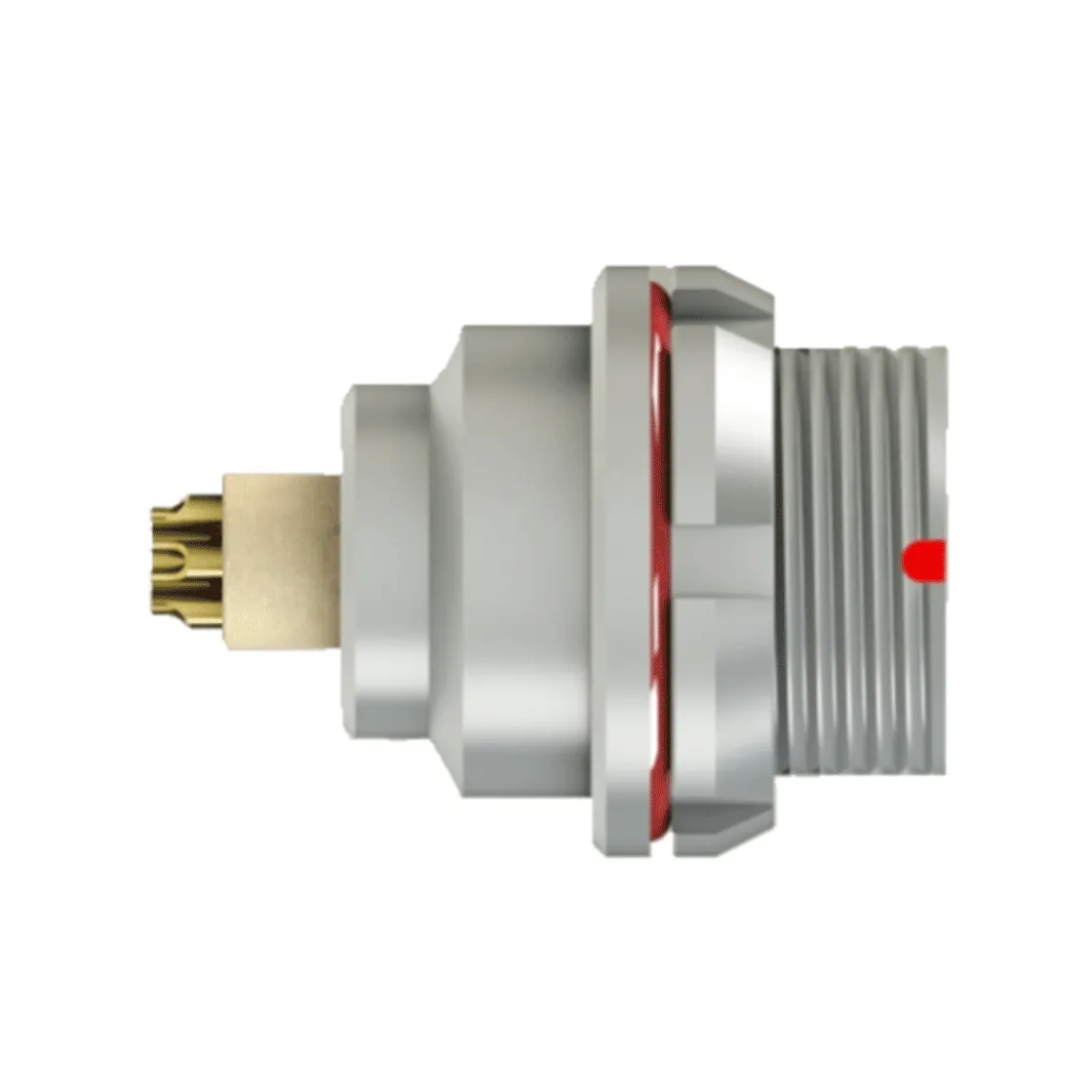

The WLconnectivity K Series ZEG is a metal circular fixed receptacle designed for rear-panel mounting. The connector body is installed from the rear side of the equipment panel and secured with a mounting nut.
Its push-pull self-latching interface enables fast mating and secure retention, while multiple keying options help prevent connector mismating. The ZEG receptacle is available in 0K, 1K and 2K shell sizes. Depending on the selected configuration and correct assembly and mating, IP65–IP68 ingress protection is available.
Available Models
ZEG.0K、ZEG.1K、ZEG.2K
Typical Applications
Instrumentation、Medical equipment、Video-processing equipment、Industrial control systems
| Mechanical endurance | More than 5,000 mating cycles |
| Maximum relative humidity | 95% RH at 60°C |
| Operating temperature | −45°C to +125°C |
| Vibration | 10–2,000 Hz, 15 g |
| Mechanical shock | s |
| Salt-spray resistance | More than 72 hours |
| Ingress protection | IP65–IP68, depending on configuration and correct assembly and mating |
Product Dimensions
Keying
The K Series connector shell designation consists of three letters. The final letter identifies the keying configuration.
Example: ZEG.1K
-ZE: fixed-receptacle body style with mounting nut for rear-panel installation
-G: standard G keying
-1K: K Series, shell size 1
