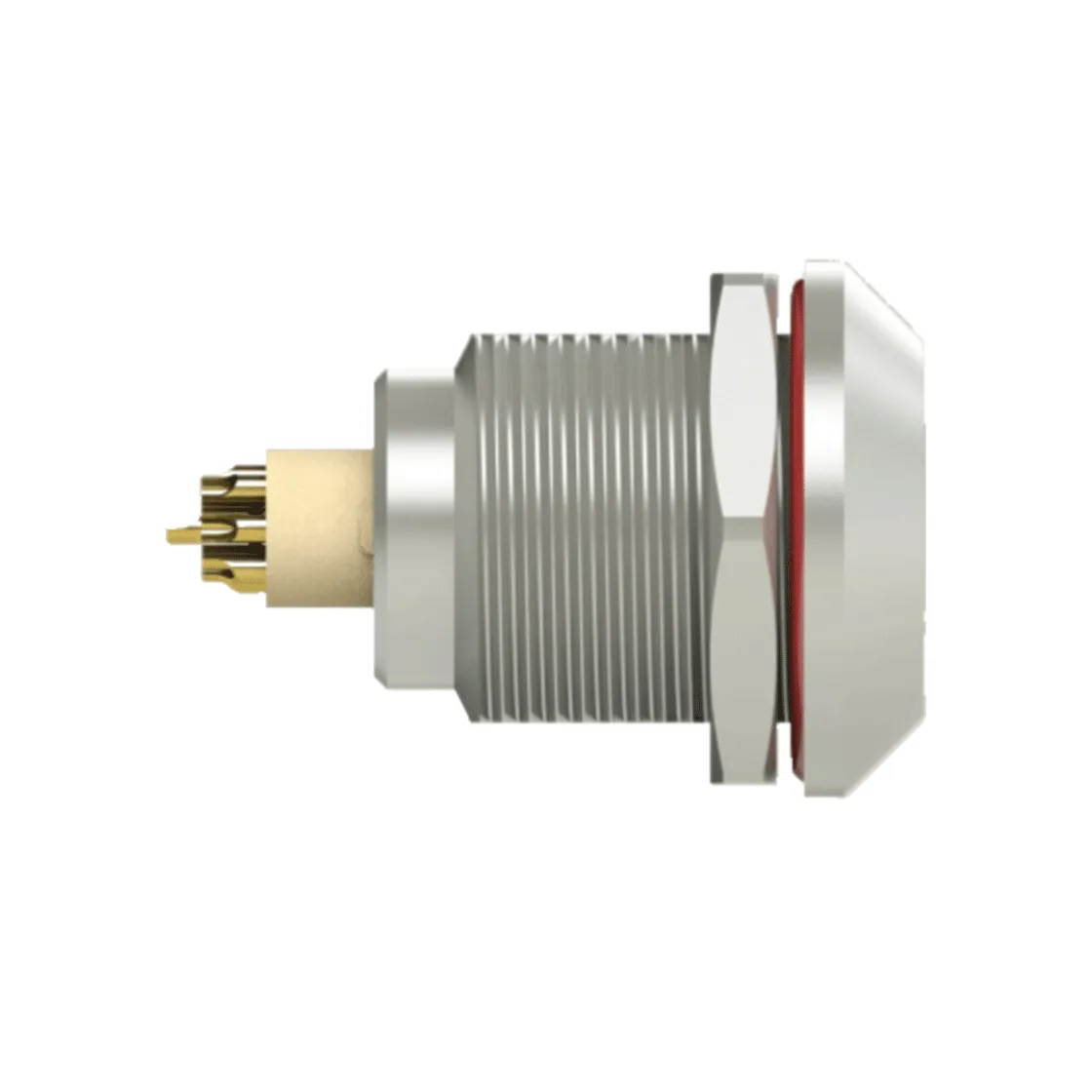

The WLconnectivity K Series ZGG is a metal circular fixed receptacle designed for front-panel mounting. Its threaded mounting section passes through the panel and is secured with a mounting nut, providing a compact and mechanically stable connection interface.
The receptacle mates with a corresponding K Series plug through a fast and secure push-pull self-latching mechanism. Standard G keying and optional A–F, L and R keying configurations help prevent mismating between connectors used for different circuits or functions.
Available Models
ZGG.0K, ZGG.1K, ZGG.2K and ZGG.3K.
Typical Applications
Instrumentation, medical equipment, video-processing equipment and industrial control systems.
| Mechanical endurance | More than 5,000 mating cycles |
| Maximum relative humidity | 95% RH at 60°C |
| Operating temperature | -45°C to +125°C |
| Vibration | 10-2,000 Hz, 15 g |
| Mechanical shock | s |
| Salt-spray resistance | More than 72 hours |
| Ingress protection | IP65-IP68, depending on configuration and correct assembly |
Product Dimensions
Keying
The K Series connector shell designation consists of three letters, with the final letter indicating the keying position.
Example: ZGG.1K — ZG indicates the fixed-receptacle body style with nut fixing, G indicates the standard G keying position, and 1K indicates K Series shell size 1.
