Reverse-Orientation RJ45 8P8C Female Right-Angle DIP Jack ｜ WLR4F9-0811A1013

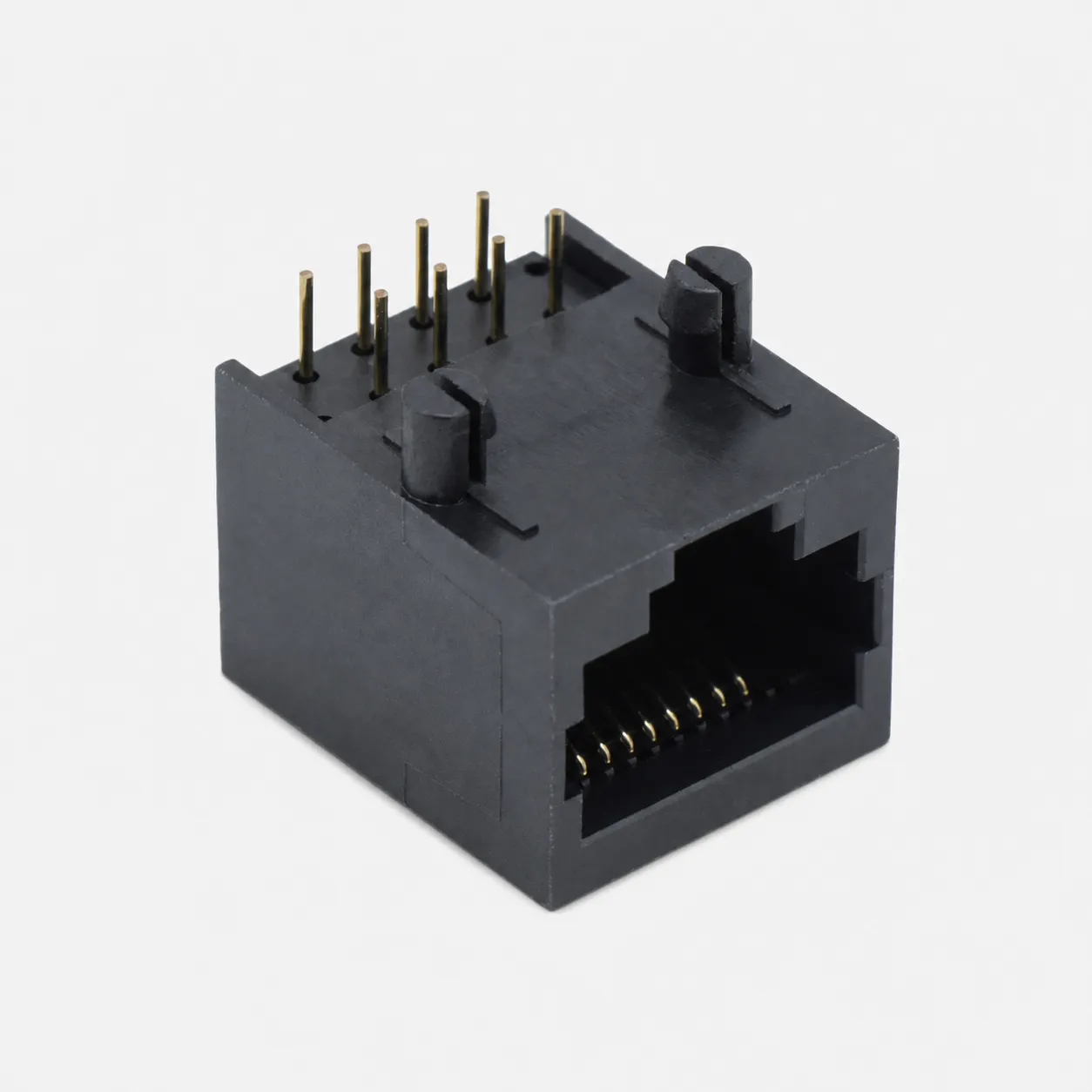

The WLR4F9-0811A1013 is an RJ45 8P8C female modular jack designed for reverse-orientation, 90° right-angle through-hole PCB mounting. It features an unshielded all-plastic construction, eight electrical contacts, PCB locating posts, all-over gold-flash-plated copper-alloy contacts, and a black UL94 V-0 PBT housing.
Application
Suitable for industrial control boards, network servers, routers, hubs, desktop computers, network switches, printers, communication equipment, and other devices requiring a compact through-hole Ethernet interface.
Key Features
| Part Number | WLR4F9-0811A1013 |
| Product Category | RJ45 Modular Jack |
| Interface Type | RJ45, 8P8C |
| Gender | Female |
| Connector Style | Modular Jack |
| Orientation | Reverse Orientation |
| Mounting Structure | Single-Layer DIP |
| Mounting Method | Through-Hole PCB Mount |
| Mounting Angle | 90° Right-Angle |
| Termination Type | DIP |
| Number of Positions | 8 |
| Number of Contacts | 8 Pins |
| Row Configuration | Single Row |
| Shielding | Unshielded |
| Housing Construction | All Plastic |
| Housing Material | PBT |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | All-Over Gold Flash |
| Rated Current | 1.5 A |
| Rated Voltage | 125 V |
| Operating Temperature | -40°C to +85°C |
