USB 3.0 Type-B Female Right-Angle DIP Connector ｜ WLU3F9-0911G0043

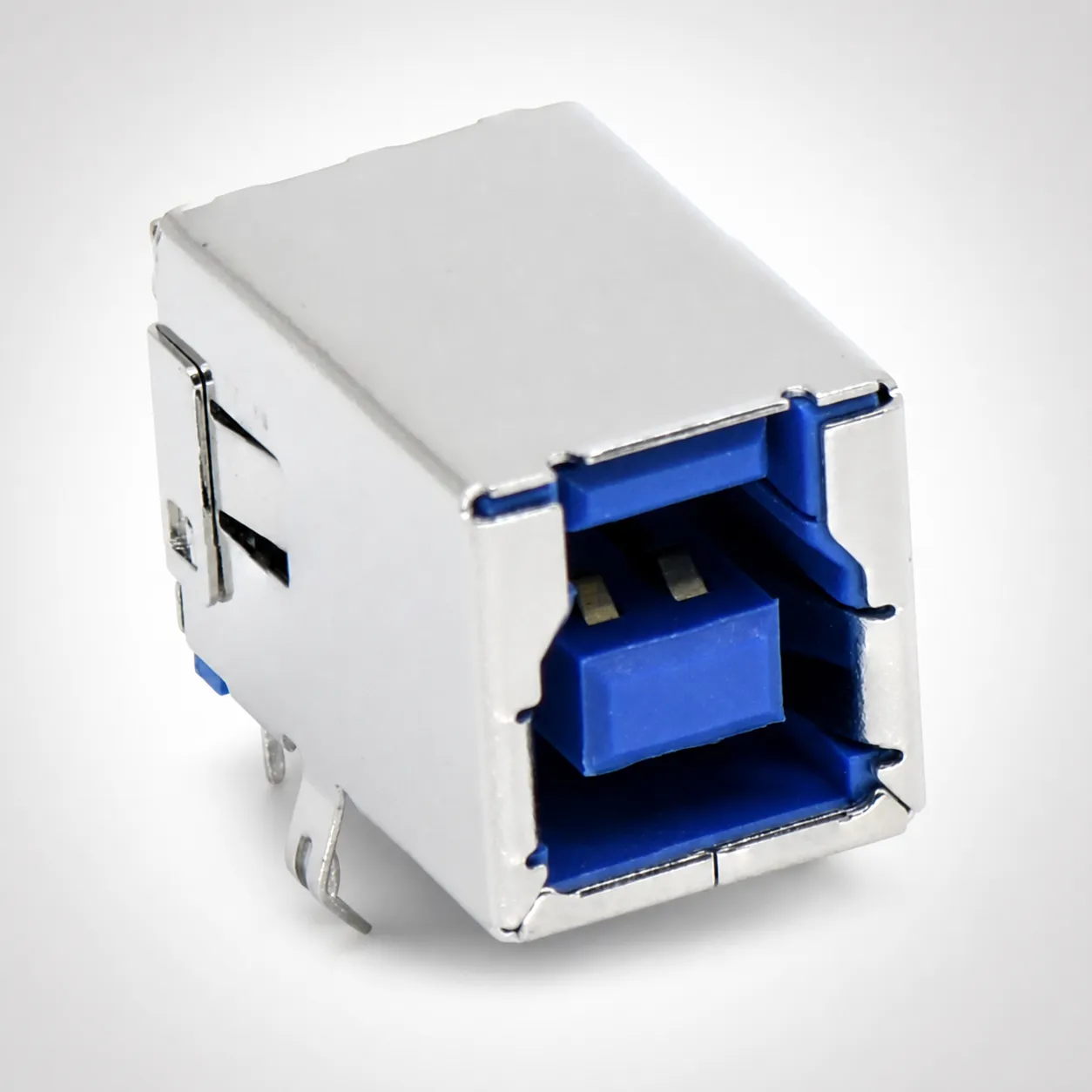

The WLU3F9-0911G0043 is a USB 3.0 Type-B female receptacle designed for right-angle through-hole PCB mounting. It features K-shaped board locks, gold-flash-plated brass contacts, a nickel-plated brass shell, and a blue UL94 V-0 PBT insulator.
This connector is suitable for industrial control boards and electronic equipment requiring reliable, high-speed data transmission. Its metal shell and secure PCB retention design provide good durability, oxidation resistance, and mechanical stability.
Technical Specifications
| Part Number | WLU3F9-0911G0043 |
| Product Category | USB Connector |
| USB Standard | USB 3.0 |
| Interface Type | Type-B |
| Gender | Female |
| Connector Style | Receptacle |
| Mounting Structure | Single-Layer DIP |
| Mounting Method | Through-Hole PCB Mount |
| Mounting Orientation | 90° Right-Angle |
| Termination Type | DIP |
| Number of Contacts | 9 Pins |
| Row Configuration | Single Row |
| PCB Retention | K-Shaped Board Locks |
| Insulator Material | PBT |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Blue |
| Contact Material | Brass |
| Contact Plating | Gold Flash |
| Shell Material | Brass |
| Shell Plating | Nickel |
| Solder Tab Material | Brass |
| Solder Tab Plating | Nickel |
| Rated Current | 1.5 A |
| Rated Voltage | 30 V |
| Operating Temperature | −40°C to +85°C |
