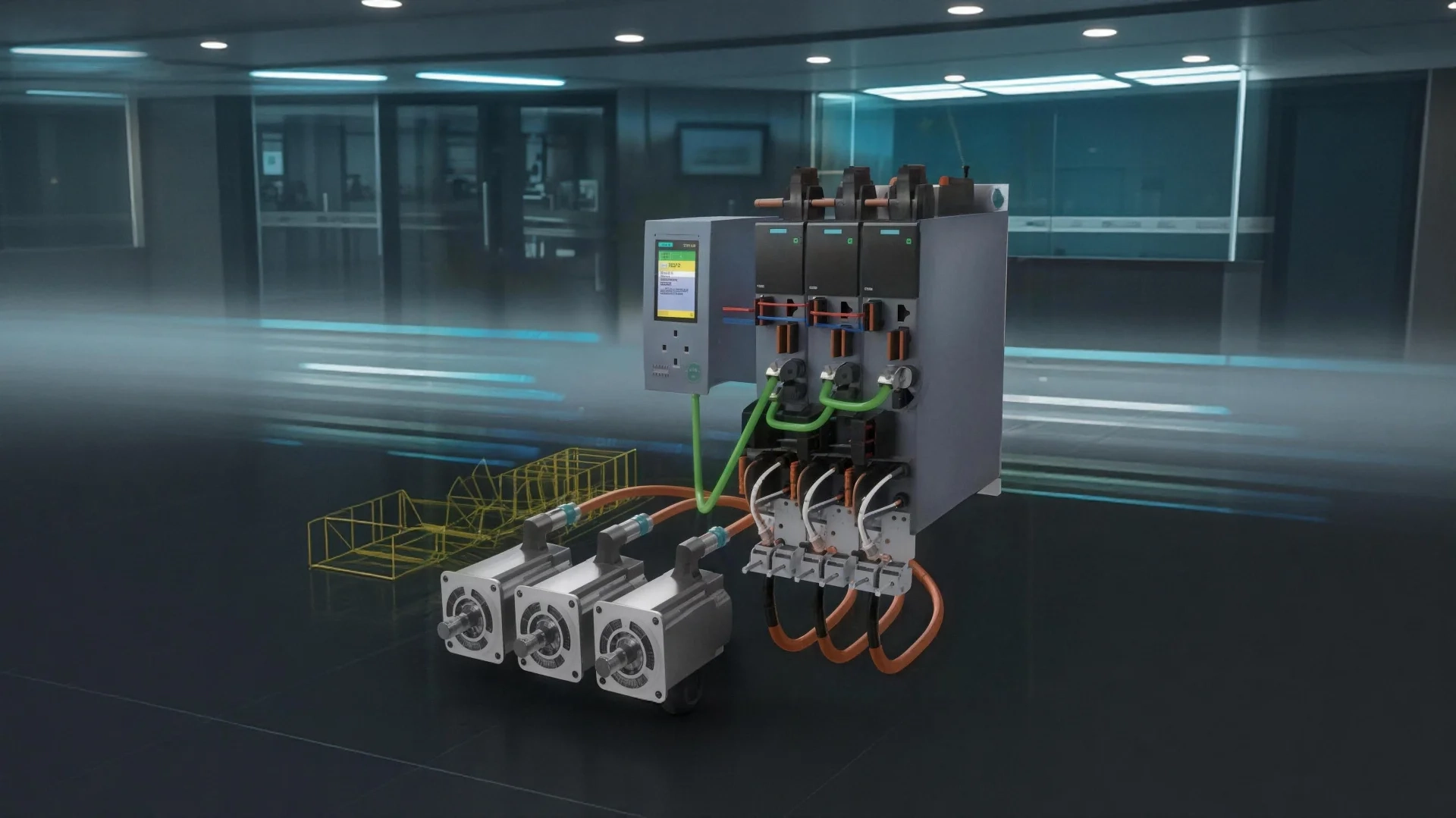

Motor & Servo Control Connectivity
IO connectors, servo cables and control board connectors for industrial servo drives and motion control systems
As Industry 4.0 advances, enhanced servo system signal and interconnection capabilities become essential.

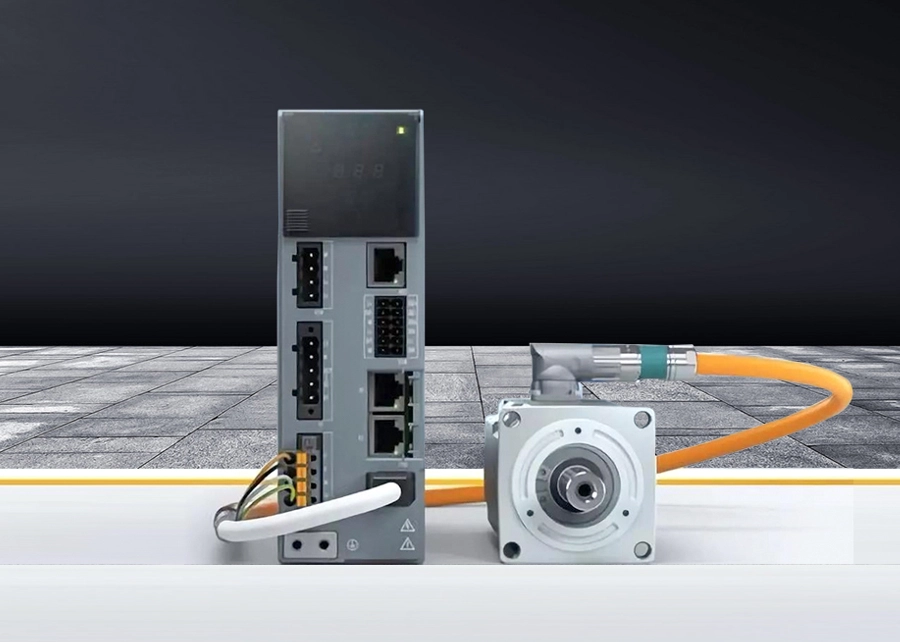

WL provides complete servo control connectivity:
Control Board Level — A1501 wire-to-board (2-5P/7P compact, stable signal transmission), C4201 power connectors (easy install, multi-wire expandable), WLGS007S screw terminal blocks (screw-fastened, no crimping needed, side-lock for flexible combination expansion).
IO & Power Interface Level — SCSI MDR 14P/20P/26P/36P/50P (stable, hot-swappable, long-distance fast transfer), D-Sub 9P/15P/25P/26P/44P (simple operation, stable structure, good shielding, multiple specifications), IEEE1394 6P (real-time high-speed, hot-swap, multi-device interconnect).
Servo Cable Level — power cables, encoder cables and brake cables with high-flex life for continuous motion applications.

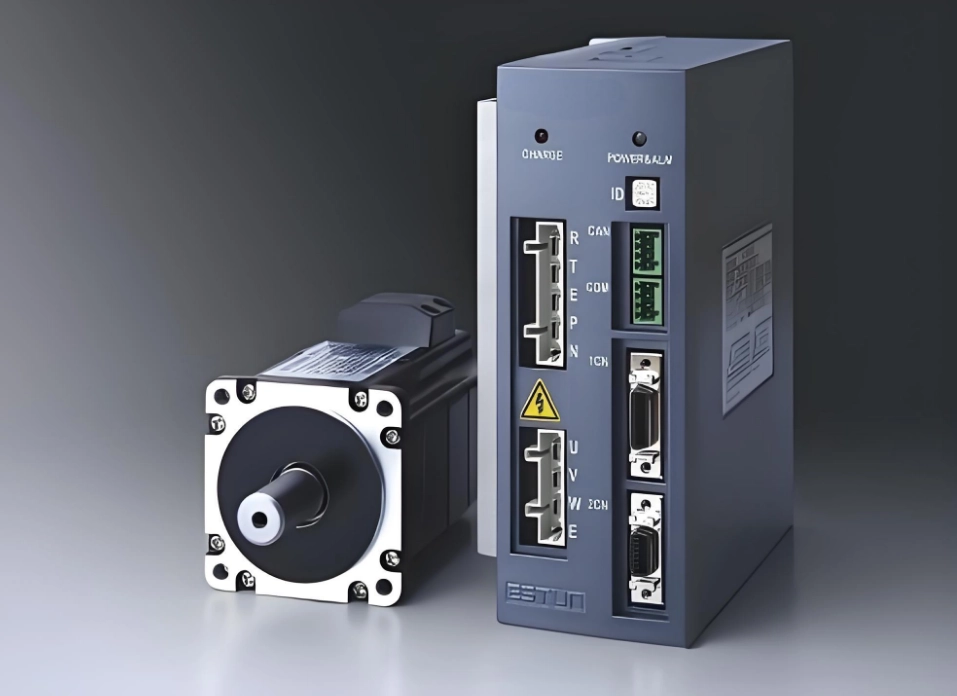

Industrial servo control systems face four key connectivity challenges:
(1) Multi-axis synchronization — synchronized motion across 4-8+ axes requires consistent signal timing through every connector in the chain.
(2) EMI susceptibility — high-frequency switching in servo drives generates electromagnetic noise that can corrupt encoder feedback and communication signals.
(3) Continuous motion fatigue — servo cables must survive millions of flex cycles in cable chains without conductor breakage.
(4) Mixed signal & power — a single servo axis needs separate power, encoder and brake connections, each with different current and signal integrity requirements.

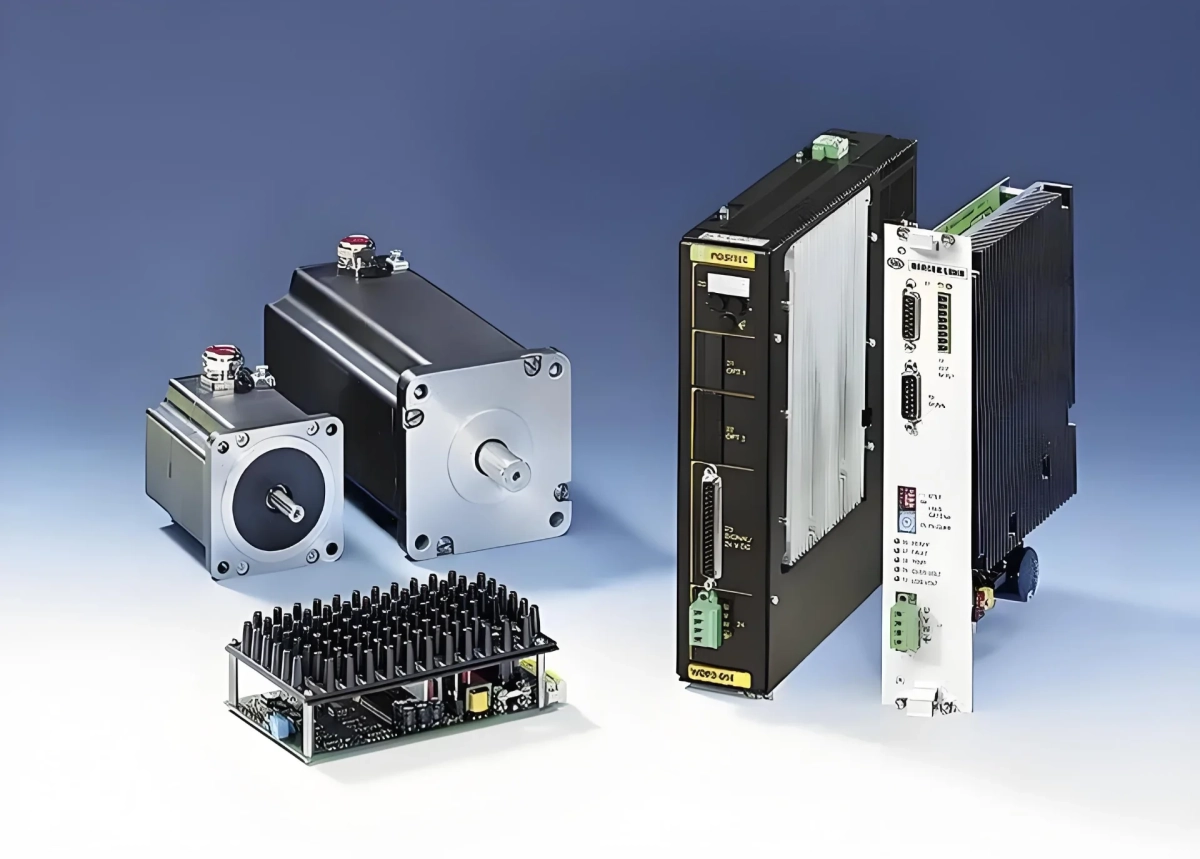

WLGS007S screw terminal blocks provide a maintenance-friendly alternative to traditional crimp terminals for power distribution panels and servo drive wiring: screw-fastened connections requiring no special crimping tools, side-lock mechanism for flexible combination expansion, vibration-resistant design for industrial cabinet environments. VH3.96mm series for higher-current field wiring in distribution panels. C4201 power connectors for motor driver board power input, supporting multi-wire expansion with easy installation.
