Signal Transmission Solutions
High-speed, low-latency data connectors for industrial communication and machine vision systems
Industrial signal transmission demands connectors that maintain data integrity at high speeds while rejecting electromagnetic noise. From machine vision cameras requiring USB3 Vision at 5Gbps, to industrial Ethernet backbone networks running PROFINET at 100Mbps, to next-gen 10Gbps fieldbus infrastructure — each application needs connectors matched to its speed tier, protocol and environmental requirements.
High-speed data connectors in industrial environments face:
(1) EMI/RFI interference — factory floors generate significant electromagnetic noise from motors, inverters and welding equipment. Shielded connectors and proper grounding are essential.
(2) Cable length vs speed trade-off — signal attenuation increases with distance, requiring impedance-matched connectors for longer runs.
(3) Environmental exposure — outdoor or washdown environments need IP67/IP68 connectors that maintain signal integrity despite moisture ingress.
(4) Protocol compatibility — different protocols (PROFINET, EtherCAT, GigE Vision, USB3 Vision) have specific connector and cable requirements.

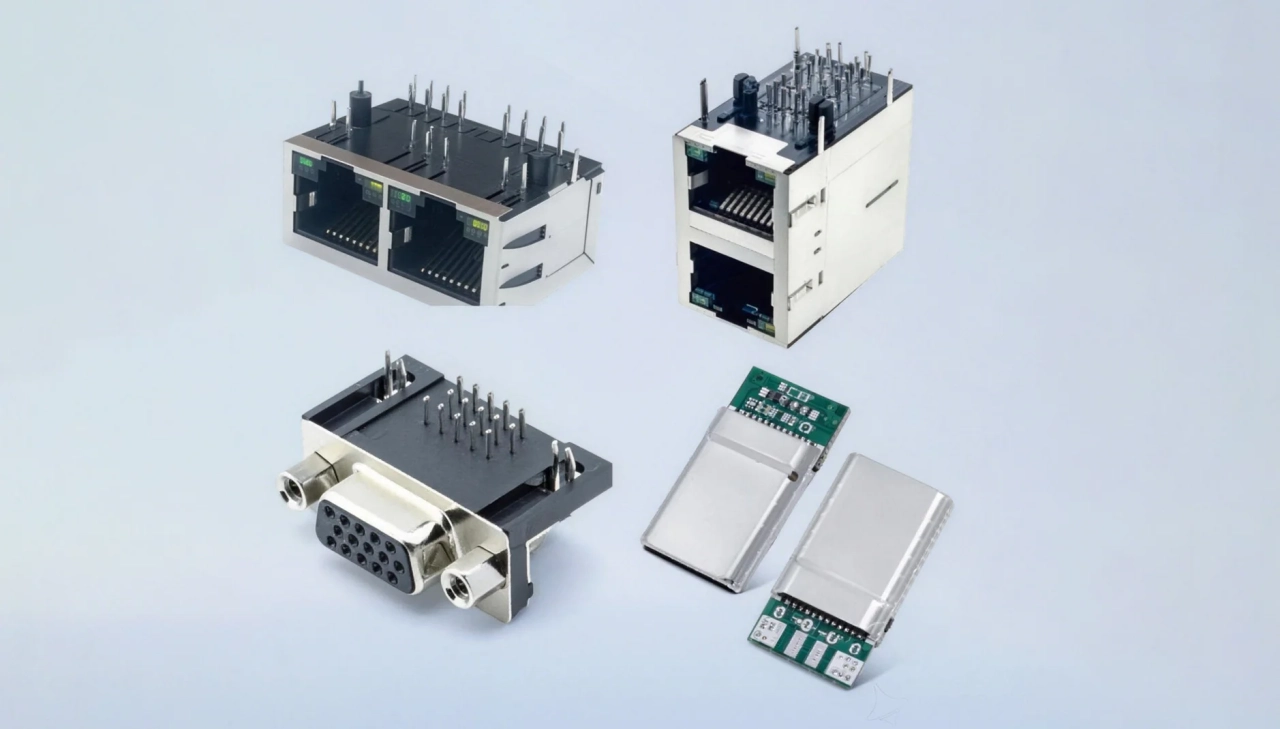

Standard Speed Tier: USB 2.0 A/B Type connectors (480Mbps) for HMI panels, barcode scanners and general device connectivity. D-Sub 9P/15P/25P for RS-232/RS-485 serial communication to legacy equipment.
High Speed Tier: USB 3.0 A Type connectors (5Gbps) for machine vision cameras (USB3 Vision protocol), high-bandwidth data acquisition. RJ45 connectors for 1Gbps Ethernet backbone and PROFINET/EtherNet/IP fieldbus. IEEE1394 6P for synchronous real-time video transmission with low latency.
Ultra-High Speed Tier: M12 X-coded connectors (10Gbps, Cat6A) for IP67/IP68-rated 10GbE industrial Ethernet in harsh environments. M12 D-coded (100Mbps) for standard PROFINET/EtherNet/IP connections with IP67 environmental sealing.
Recommended Products
GX20 Industrial GX Circular Connector, 10-pin Female Cable Plug
GX12 series M12 circular electrical connector, 4-pin double-faceted positioning male socket
DS16 Series Aviation Straight Cable Sheathed Male Plug for Cable Connection
DP29 Series Industrial Multi-Core Circular Waterproof Aviation Cable Connector
Signal Transmission by Application
Data Communication
IO for Data Communication
M12 for Data Communication
Related Case Study
Servo Control System Integration
Get Signal Transmission Connector Quote
FAQs
What industry certifications has the product passed?
All products are certified by ISO9001, IATF16949, UL, QC080000 and comply with RoHS/REACH environmental standards.
How do I request a price quote and place an order for a product
What are the sampling period and minimum order quantity for customized products
Does it support customized development of connectors/wire harnesses?
How to select the appropriate connector terminal and housing combination?
How can I find the core parameters of a connector, such as its temperature resistance and protection rating?
What application scenarios are suitable for 1.00mm pitch housings?
How to obtain 2D/3D drawings of a product?
What pin counts are available for a single-row rubber housing with a 1.00mm pitch？
How many specifications of connectors does your company offer?
