USB 3.0 Type-A Female Right-Angle SMT Connector ｜ WLU3F9-0921G2095

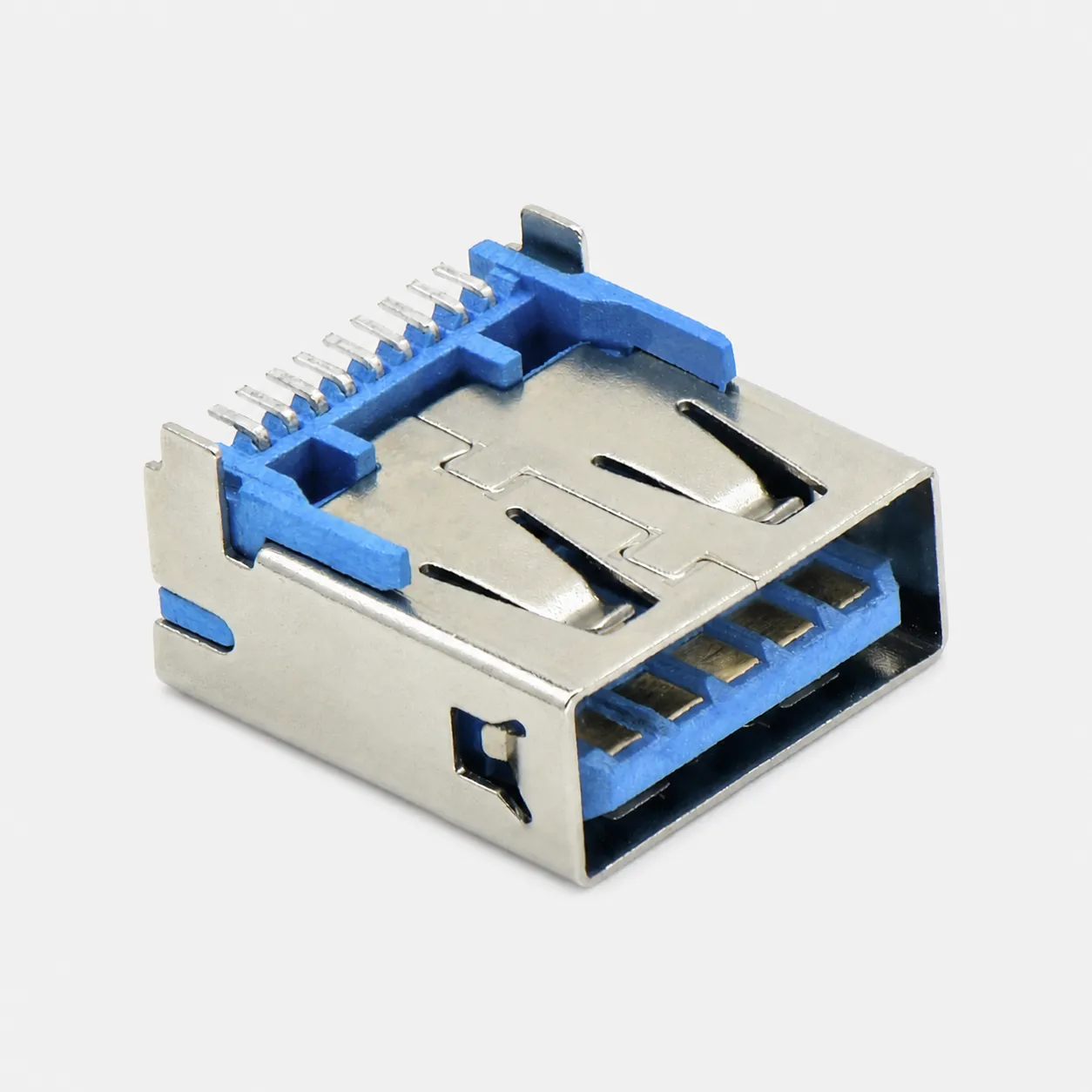

The WLU3F9-0921G2095 is a USB 3.0 Type-A female receptacle designed for 90° right-angle surface mounting. It features nine SMT contacts, two through-hole PCB mounting tabs with a 1.0 mm tab height, a non-flanged shell, gold-flash-plated copper-alloy contacts, a nickel-plated copper-alloy shell, and a blue UL94 V-0 LCP insulator.
Applications
Suitable for industrial control boards, factory automation equipment, compact electronic instruments, industrial sensors, data acquisition devices, communication equipment, and other applications requiring high-speed USB connectivity and space-efficient PCB assembly.
FEATURE
| Part Number | WLU3F9-0921G2095 |
| Product Category | USB Connector |
| USB Standard | USB 3.0 |
| Interface Type | Type-A |
| Gender | Female |
| Connector Style | Receptacle |
| Mounting Structure | Single-Layer SMT |
| Mounting Method | Surface Mount with Through-Hole Shell Tabs |
| Mounting Orientation | 90° Right-Angle |
| Contact Termination | SMT |
| Number of Contacts | 9 Pins |
| Row Configuration | Single Row |
| PCB Retention | Two Through-Hole Mounting Tabs |
| Mounting-Tab Height | 1.0 mm |
| Shell Style | Non-Flanged |
| Insulator Material | LCP |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Blue |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash |
| Shell/Solder Tab Material | Copper Alloy |
| Shell Plating | Nickel |
| Rated Current | 1.5 A |
| Rated Voltage | 30 V |
| Operating Temperature | -40°C to +85°C |
