Product Description

IP68 protection rating, threaded locking, double waterproof seals (inner and outer),
tail locking claws, and enhanced waterproof and dustproof reliability.

Multi-core configuration

The DP29 series waterproof connectors are designed with most of the core count models used on the market to meet the application needs of different scenarios.

The DP29 cable plug is available in 2, 3, 4, 7, 8, 9, 10B, 10, 12, 16, 17, 20, 24, and 26 pins to meet your needs in different applications (power supply, signal transmission).

Connection method

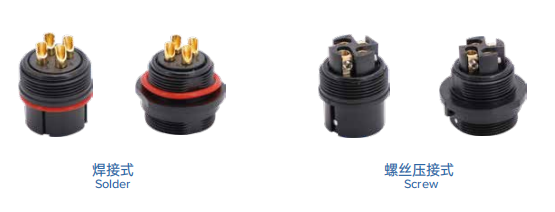

It offers two connection methods: solder connection and screw crimping (no soldering required), ensuring the stability and ease of connection of the wire end, and meeting the needs of efficient and convenient connection in the field of equipment.

Excellent waterproof performance

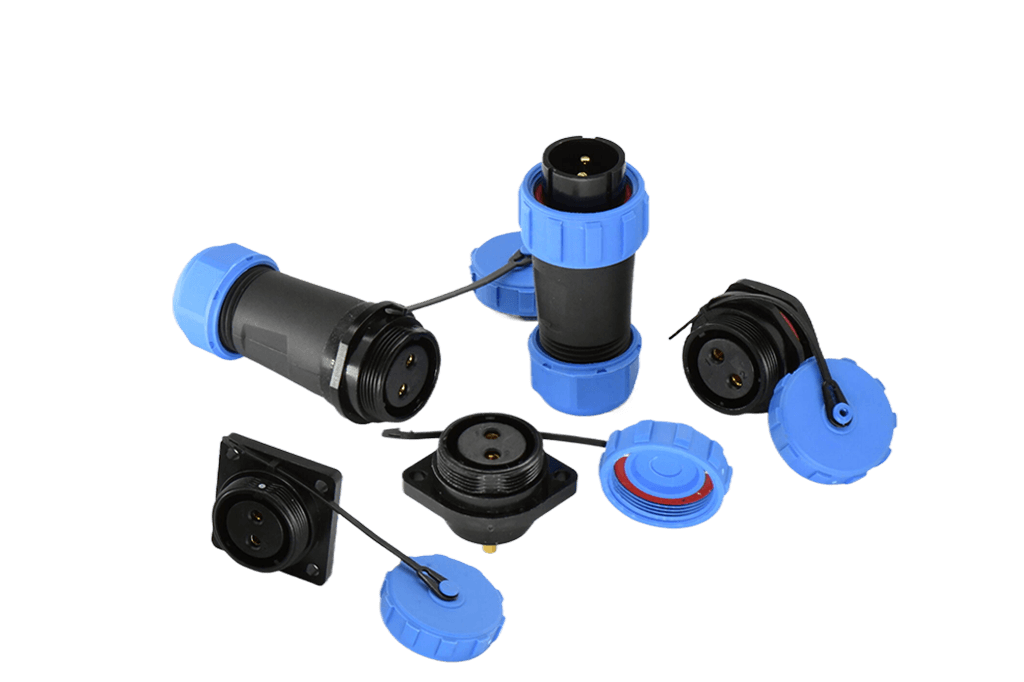

The DP29 series waterproof connectors feature a dust cover and a stable screw locking device, providing excellent sealing performance when connected. With a waterproof rating of IP68, they effectively protect against water mist and dust corrosion, ensuring the normal operation of industrial equipment in harsh outdoor environments.

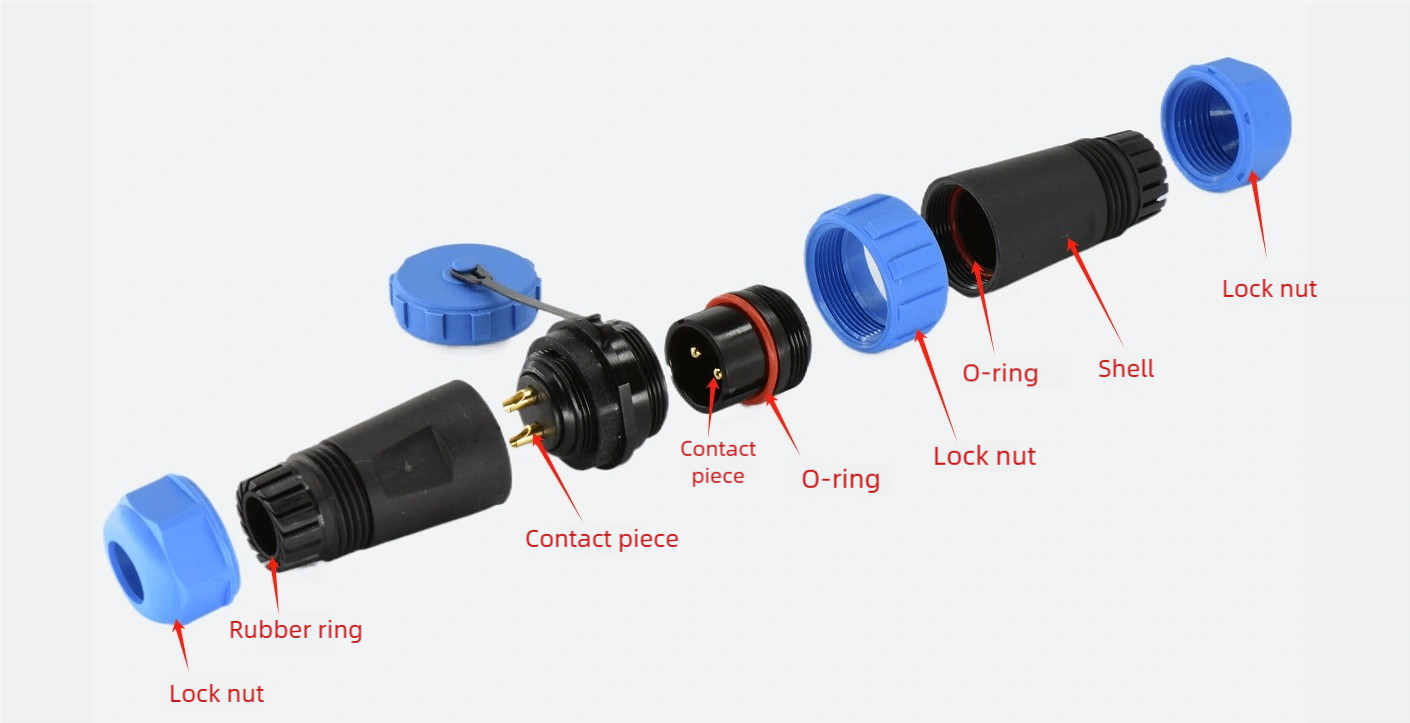

Exploded elevation view

Composed of superior materials: The outer shell is made of thermoplastic PA66, meeting the V-0 flame retardant standard, ensuring it remains non-combustible even under high temperatures and near open flames; the copper pins are gold-plated, offering excellent conductivity and resistance to oxidation.

DP29 series

● Waterproof IP68 ● Threaded locking

★ Contacts can be pins or sockets.

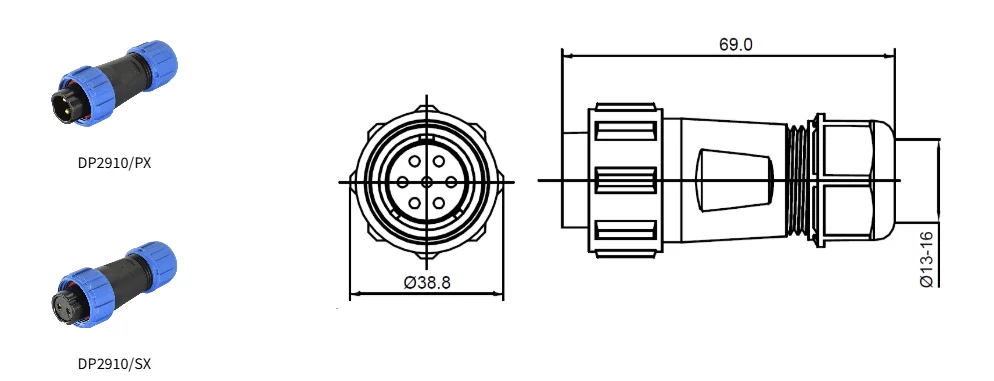

Dimensions

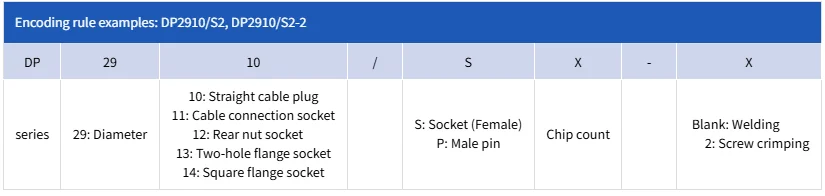

Series Configuration Table

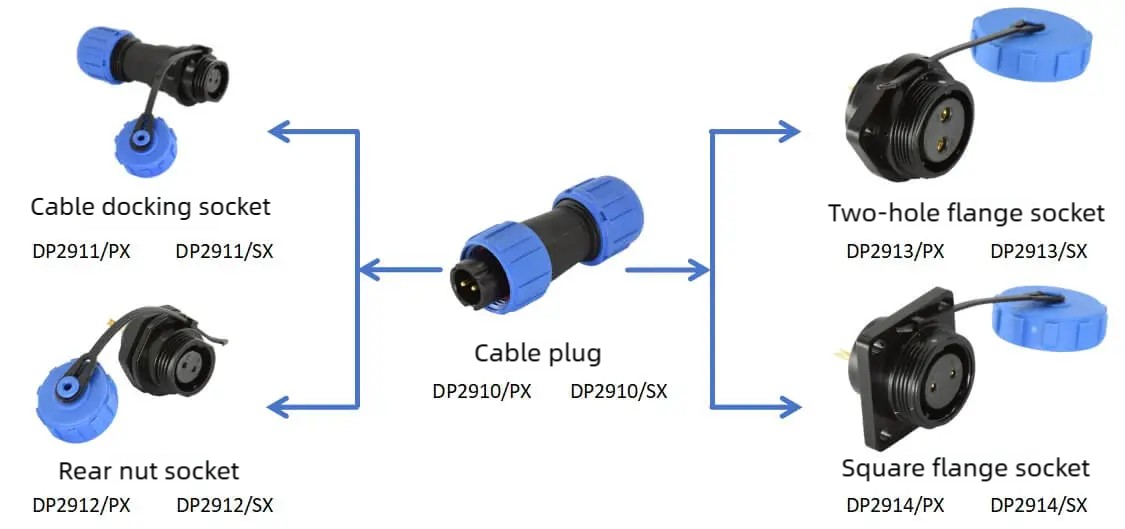

DP29 Series Configuration Diagram

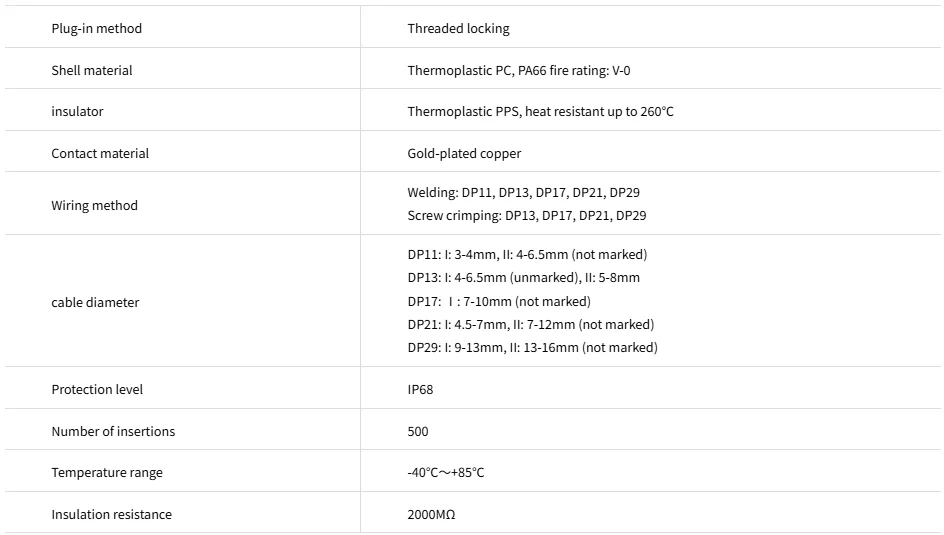

Technical parameters

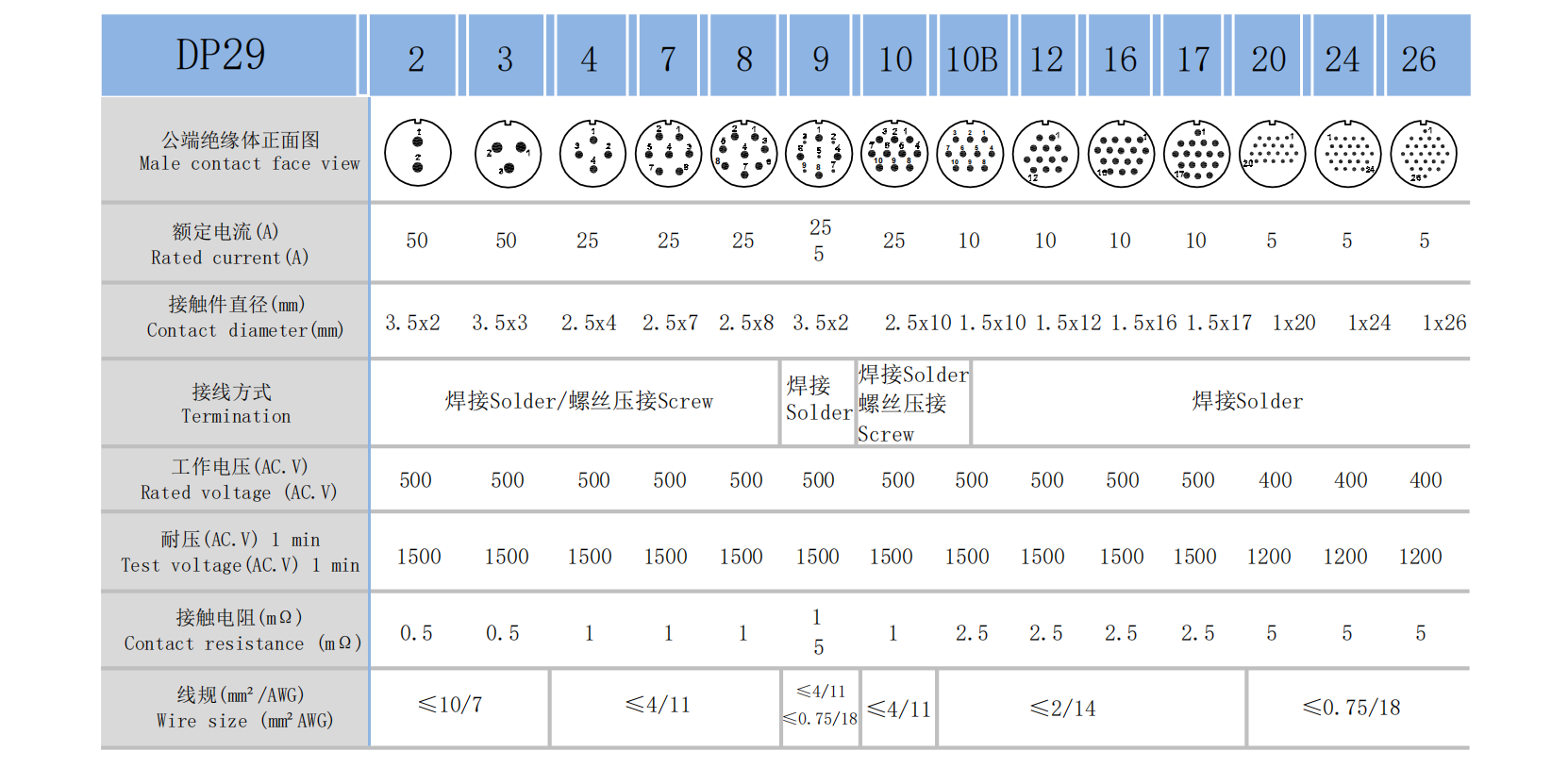

Welding core parameters
