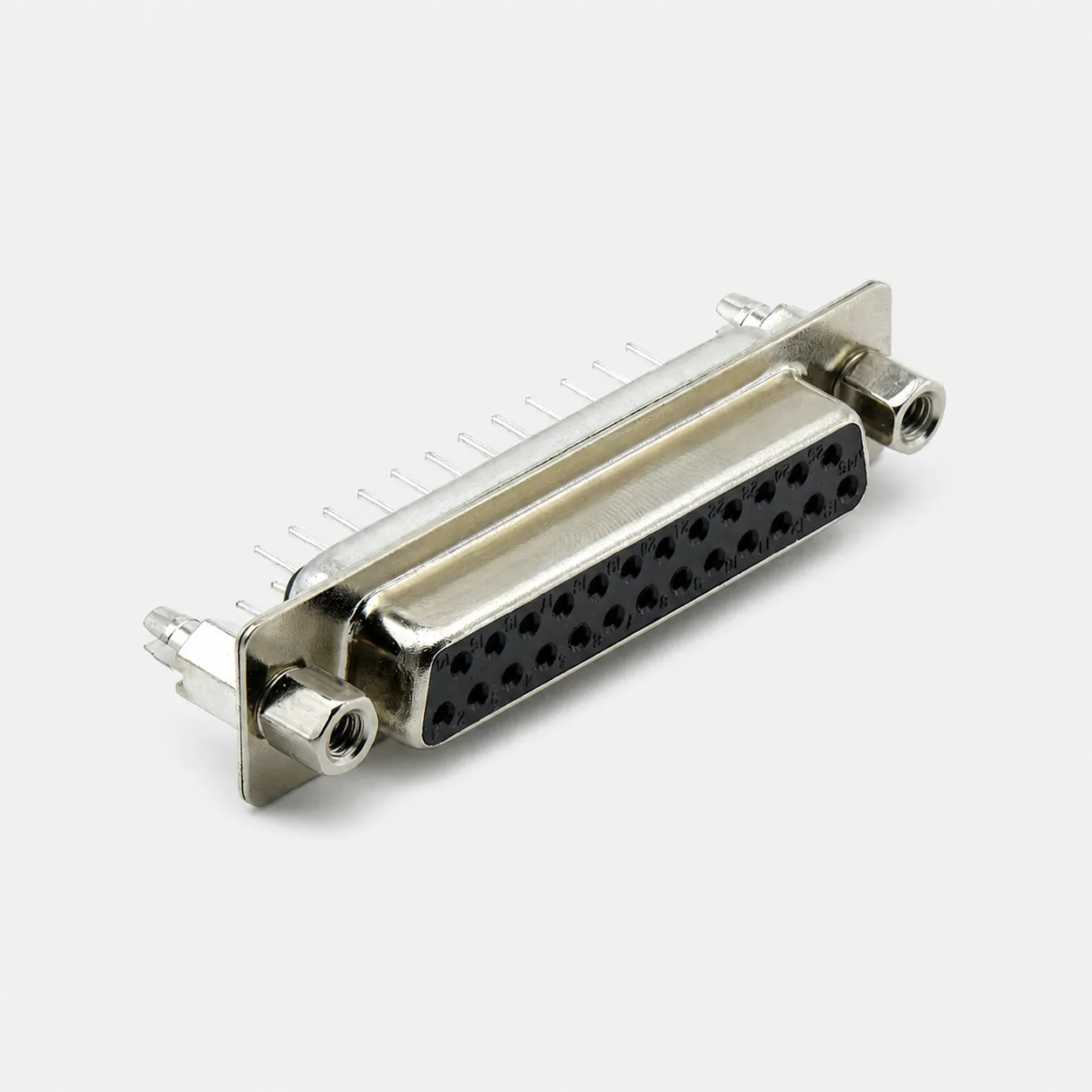

The WLDBF0-2511AC030 is a 25-position, two-row DB-25 female receptacle designed for straight 180° through-hole PCB mounting. It features front-riveted 4.8 mounting nuts, rear-riveted 6.0 forked board locks, gold-flash-plated copper-alloy contacts, a nickel-plated SPCC steel shell and board-lock structure, and a black UL94 V-0 PBT insulator.
Application
Suitable for industrial control boards, process automation systems, factory automation equipment, electronic instruments, communication equipment, data acquisition systems, commercial transportation electronics, and other devices requiring a 25-circuit PCB-mounted D-Sub interface.
| Part Number | WLDBF0-2511AC030 |
| Product Category | D-Sub Connector |
| Connector Format | DB-25 |
| Manufacturer Type | DP |
| Gender | Female / Receptacle |
| Number of Positions | 25 |
| Contact Arrangement | Dual Row |
| Mounting Orientation | 180° Straight / Vertical |
| Termination Type | DIP Through-Hole |
| Front Hardware | Riveted 4.8 Mounting Nuts |
| Rear PCB Retention | Riveted 6.0 Forked Board Locks |
| Insulator Material | PBT |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash (G/F) |
| Shell/Board-Lock Material | SPCC Cold-Rolled Steel |
| Shell/Board-Lock Plating | Nickel |
| Rated Current | 3 A |
| Rated Voltage | 250 V |
| Operating Temperature | -55°C to +105°C |
【2D Drawing】WLDBF0-2511AC030
You May Also Like

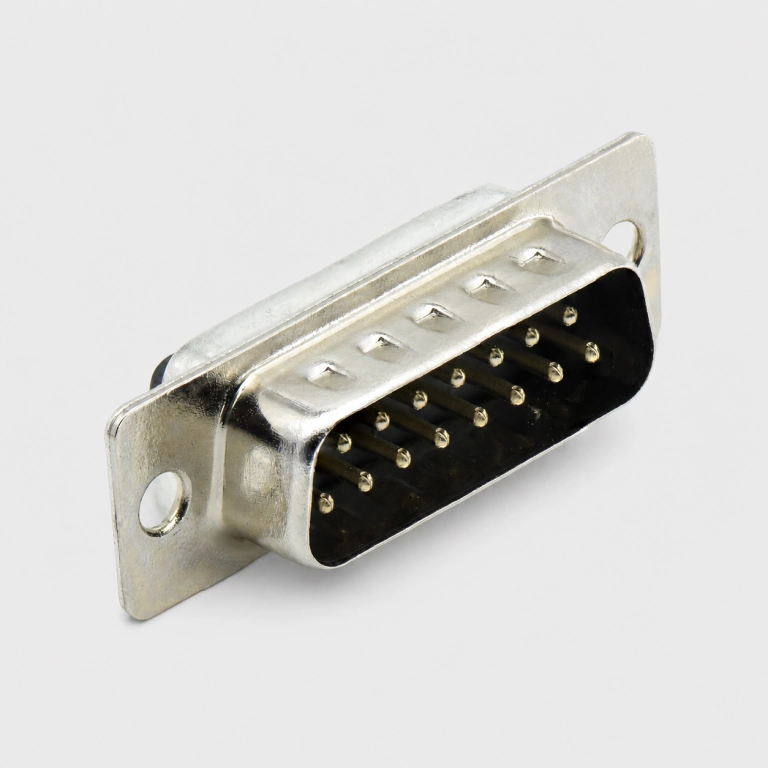

DA-15 Male Straight Solder-Cup D-Sub Connector ｜ WLDBM0-1541AA018

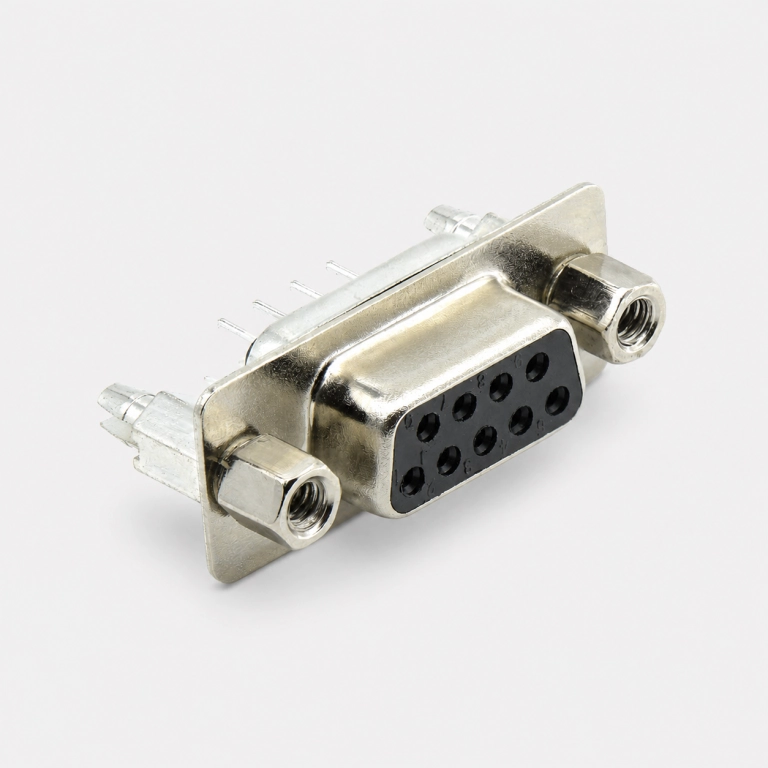

DE-9 Female Vertical DIP D-Sub Connector ｜ WLDBF0-0911AD026
