USB 3.0 Type-A Female Vertical DIP Connector ｜ WLU3F0-0911G1205

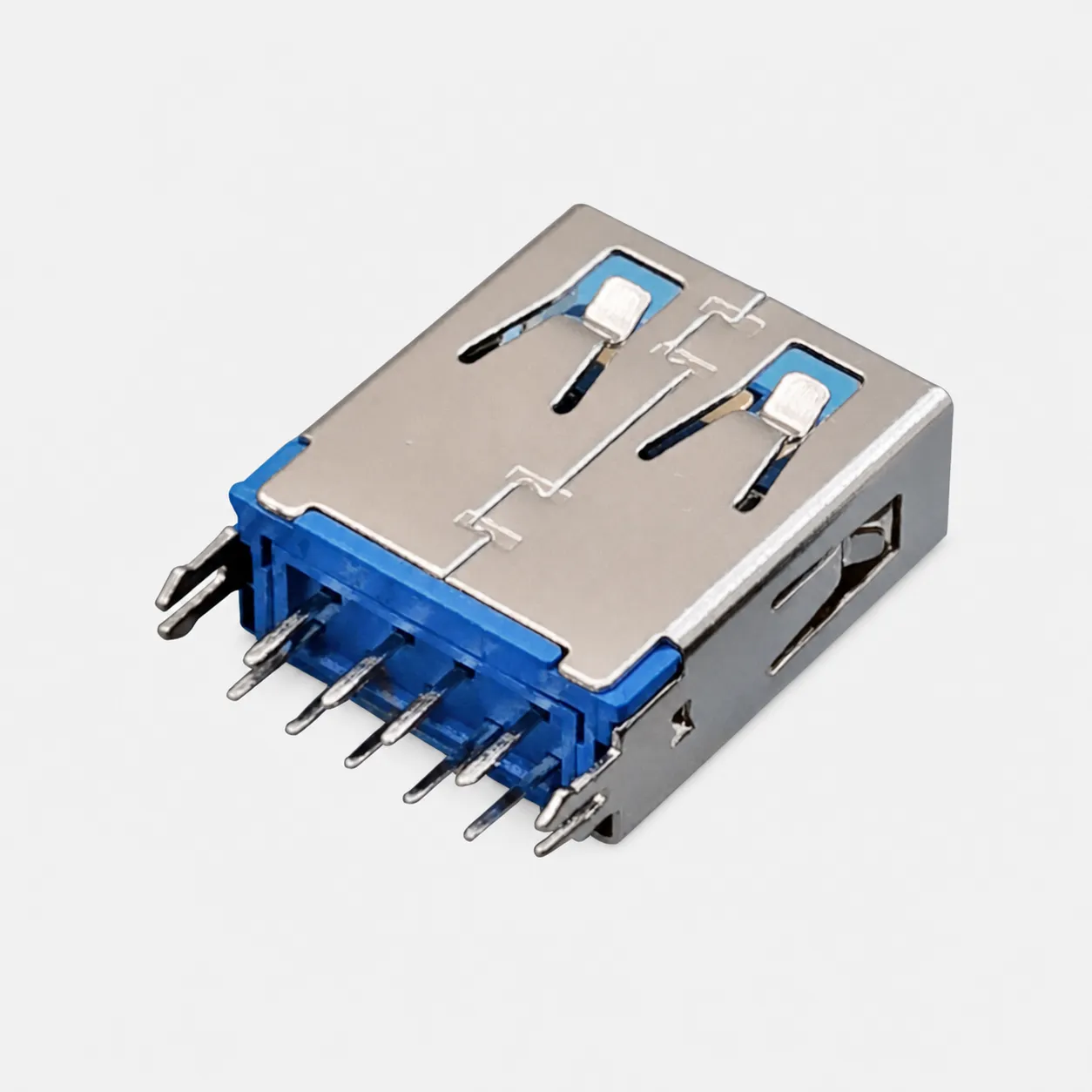

The WLU3F0-0911G1205 is a USB 3.0 Type-A female receptacle designed for 180° vertical through-hole PCB mounting. It features nine electrical contacts, fork-shaped board locks, a flush front opening, a 15.0 mm body length, gold-flash-plated copper-alloy contacts, a nickel-plated SPCC steel shell, and a blue UL94 V-0 PBT insulator.
Application
It is suitable for industrial control boards, factory automation equipment, electronic instruments, industrial sensors, data acquisition devices, communication equipment, and other applications requiring secure PCB retention and reliable high-speed USB connectivity.
【2D Drawing】WLU3F9-092XXX095
Technical Specifications
| Part Number | WLU3F0-0911G1205 |
| Product Category | USB Connector |
| USB Standard | USB 3.0 |
| Interface Type | Type-A |
| Gender | Female |
| Connector Style | Receptacle |
| Mounting Structure | Single-Layer DIP |
| Mounting Method | Through-Hole PCB Mount |
| Mounting Orientation | 180° Vertical |
| Termination Type | DIP |
| Number of Contacts | 9 Pins |
| Row Configuration | Single Row |
| PCB Retention | Fork-Shaped Board Locks |
| Front Opening | Flush |
| Body Length | 15.0 mm |
| Insulator Material | PBT |
| Flammability Rating | UL94 V-0 |
| Insulator Color | Blue |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash |
| Shell/Solder Tab Material | SPCC Steel |
| Shell/Solder Tab Plating | Nickel |
| Rated Current | 1.5 A |
| Rated Voltage | 30 V |
| Operating Temperature | -40°C to +85°C |
