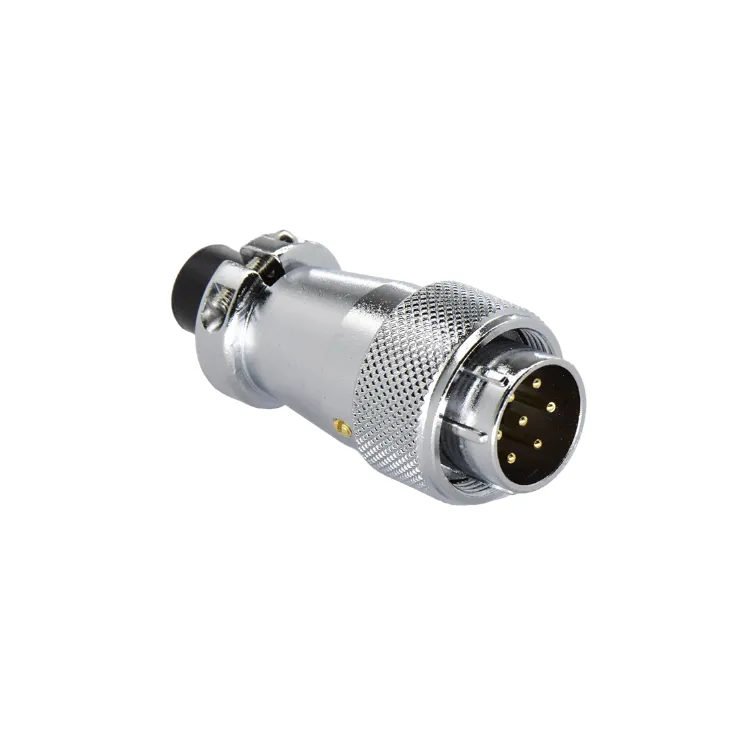

DS20 series are high-performance metal circular connectors designed for harsh environments like humidity, outdoor and dusty conditions. Featuring IP68 waterproof and dustproof protection, threaded locking, and chrome-plated zinc alloy housing, they are corrosion-resistant and durable. Available in 2–15 pins with gold-plated copper contacts for stable conductivity. Widely used in machinery, communications, instrumentation, lighting, automotive and industrial automation equipment for reliable power and signal connections.

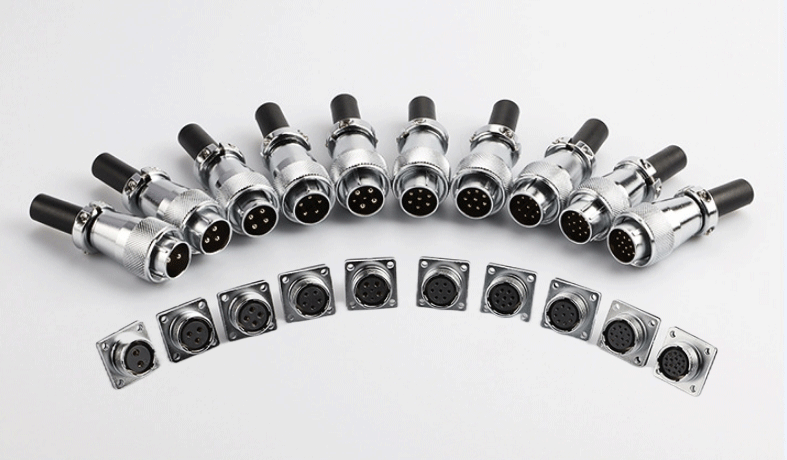

Multi-core configuration
The DS20 series plugs and sockets offer a variety of pin options, including 2, 3, 4, 5, 6, 7, 8, 9, 12, and 15 pins, to meet your power connection or signal transmission needs in different applications.

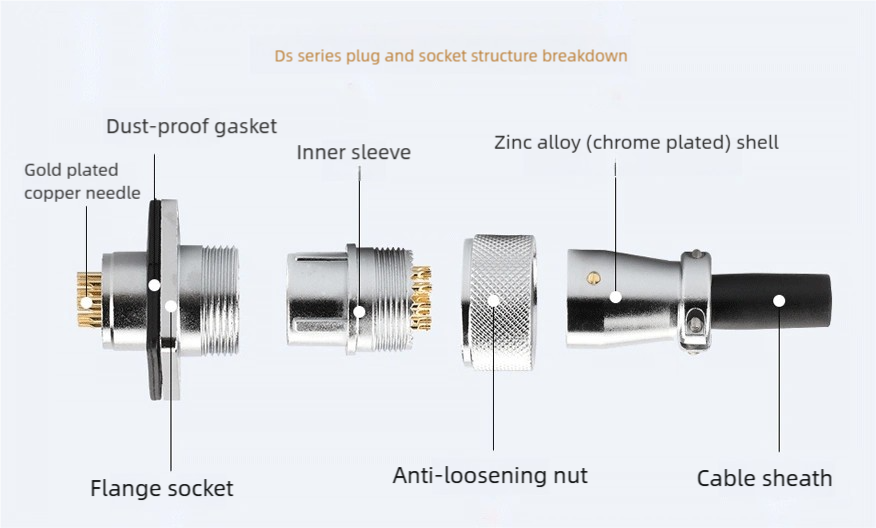

Exploded view
The DS aviation connector series products use zinc alloy (chrome-plated) metal for the outer shell, which is corrosion-resistant and has a long service life. The chrome plating makes the product surface more beautiful. The thermoplastic PPS insulator has good electrical insulation, high temperature resistance, and corrosion resistance. The gold-plated copper pins are resistant to insertion and removal, oxidation resistance, and faster and more stable conductivity.
You May Also Like
DS28 Series Aviation Straight Cable Sheathed Male Plug for Cable Connection
DS24 Series Aviation Straight Cable Sheathed Male Plug for Cable Connection
DS20 Series Aviation Straight Cable Sheathed Male Plug for Cable Connection
DS16 Series Aviation Straight Cable Sheathed Male Plug for Cable Connection

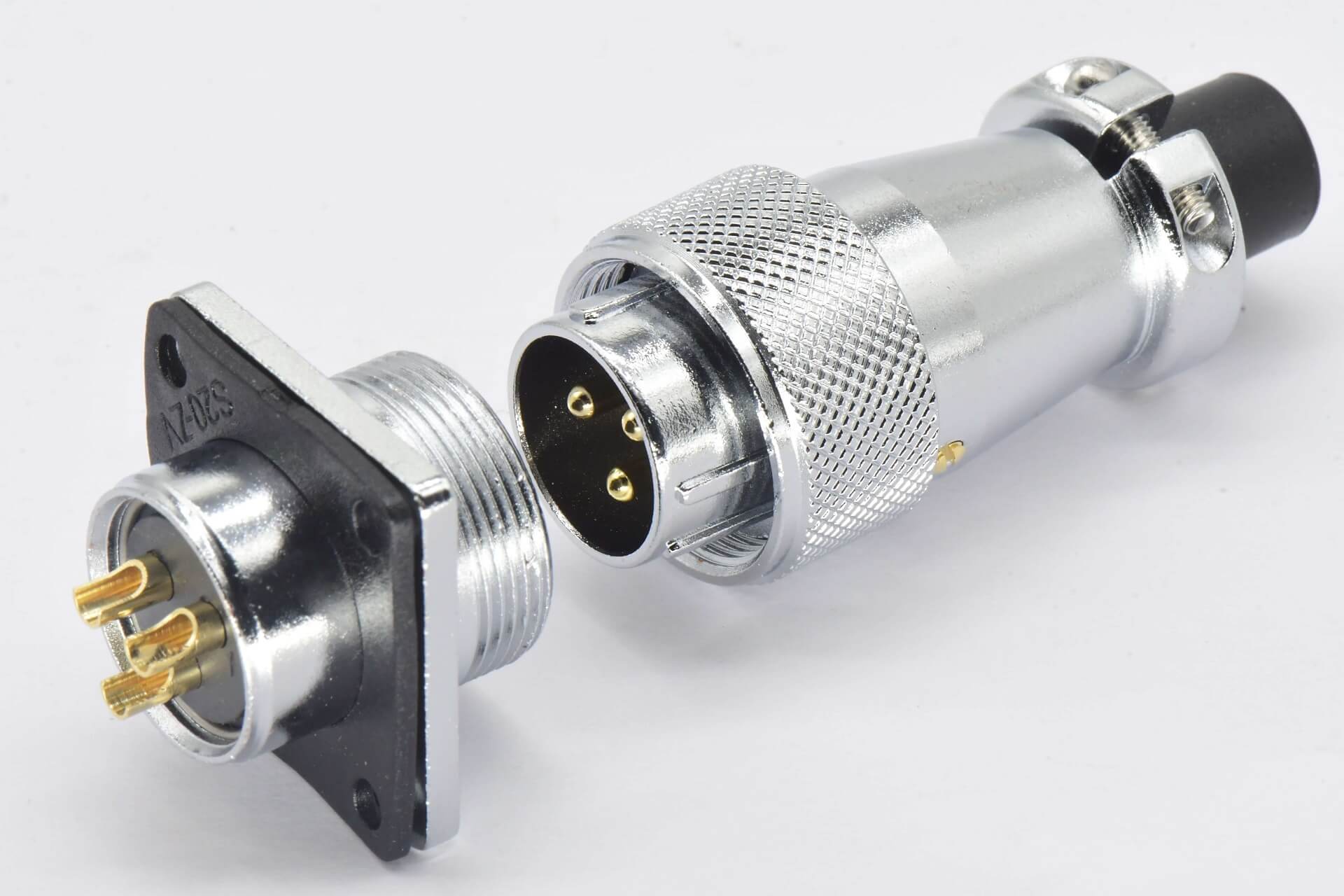

Series Configuration Table
