Features

Multi-core configuration

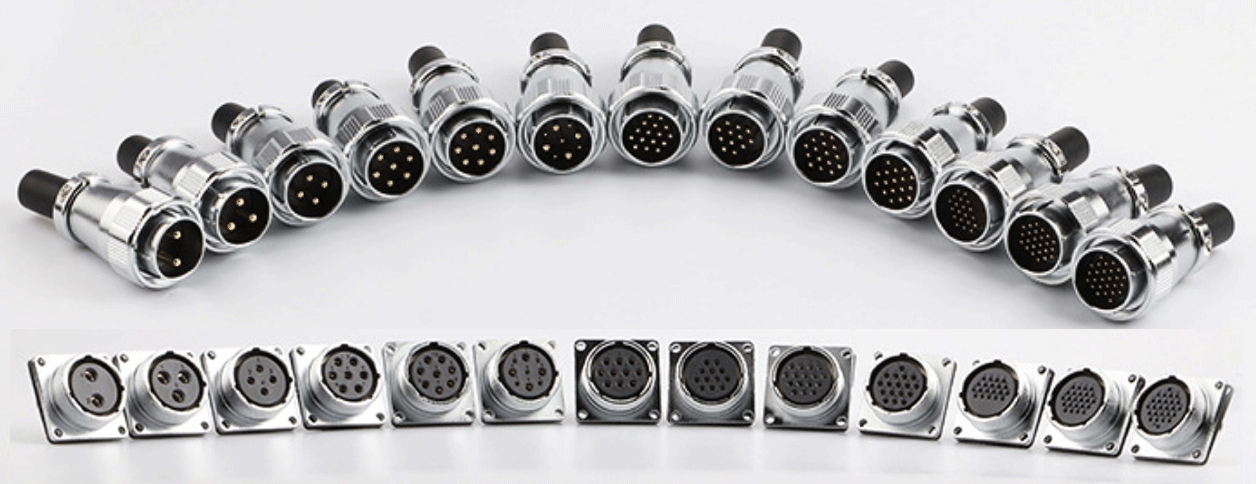

The DS28 series plugs and sockets offer a variety of pin options, including 2, 3, 4, 7, 8, 9, 10, 12, 16, 17, 20, 24, 26, and 35 pins, meeting your needs for power connection or signal transmission in different applications.

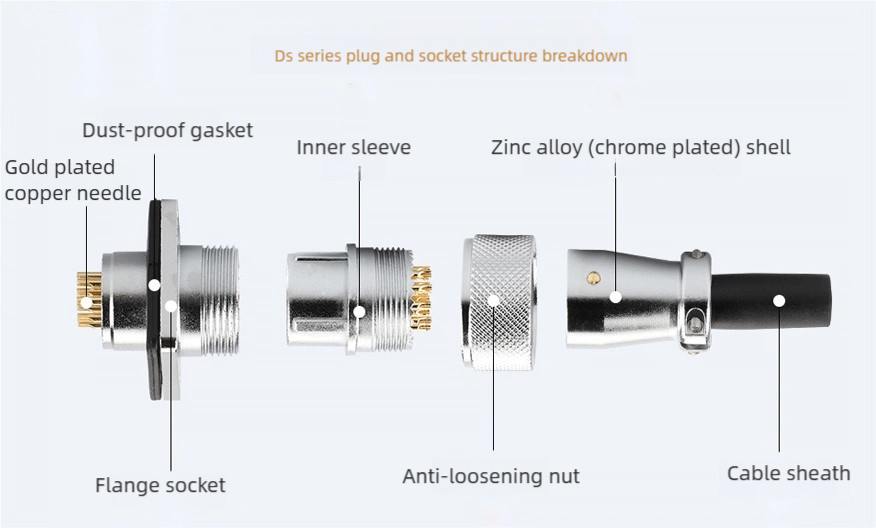

Exploded view

The DS aviation connector series products use zinc alloy (chrome-plated) metal for the outer shell, which is corrosion-resistant and has a long service life. The chrome plating makes the product surface more beautiful. The thermoplastic PPS insulator has good electrical insulation, high temperature resistance, and corrosion resistance. The gold-plated copper pins are resistant to insertion and removal, oxidation resistance, and faster and more stable conductivity.

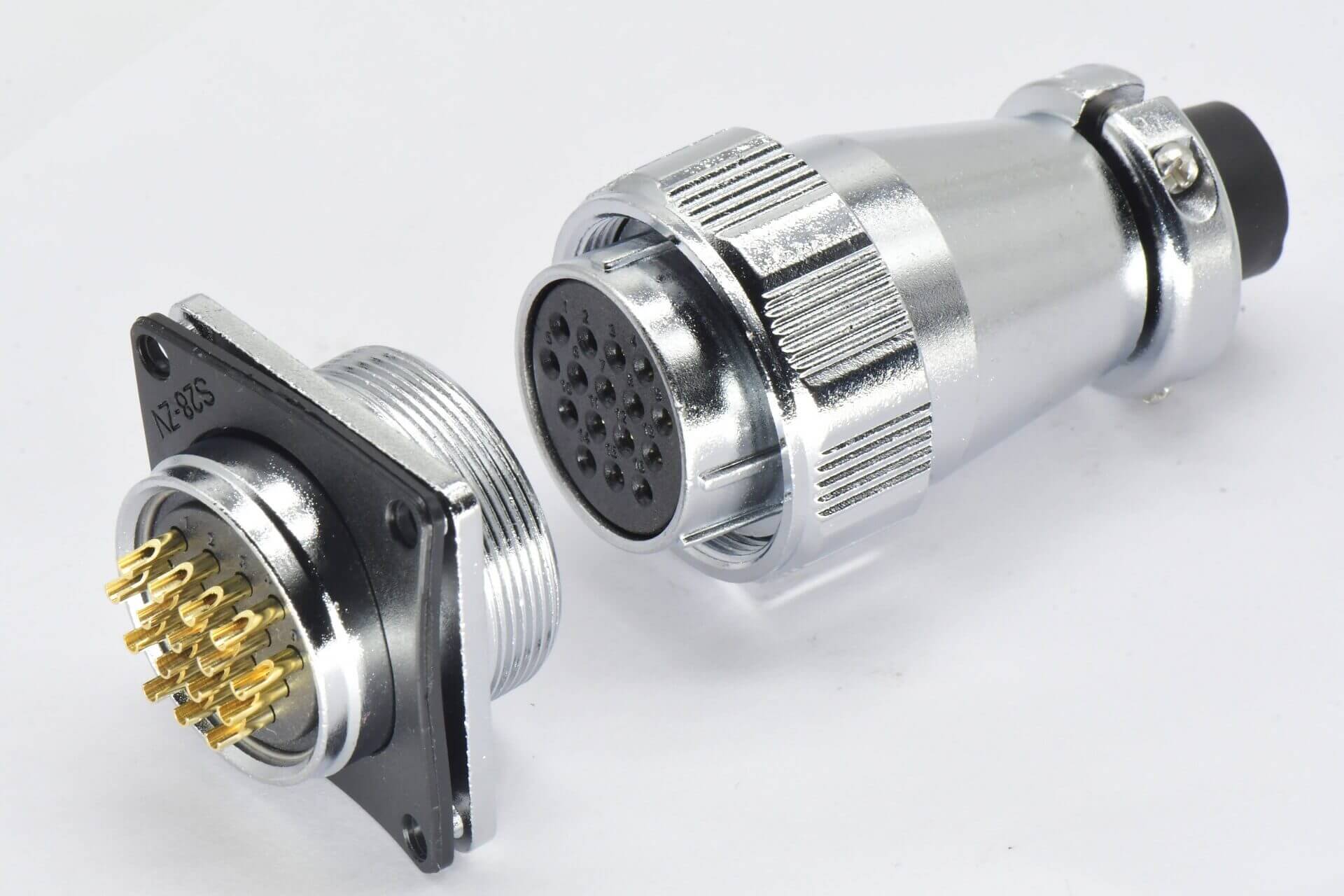

Series Configuration Table

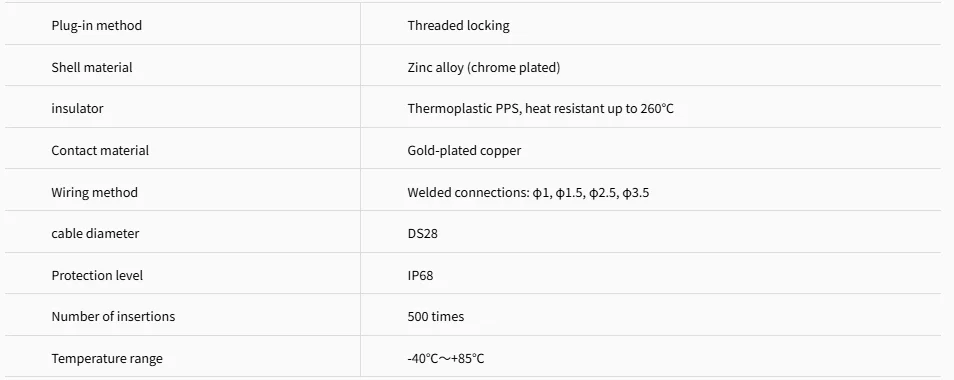

Technical parameters

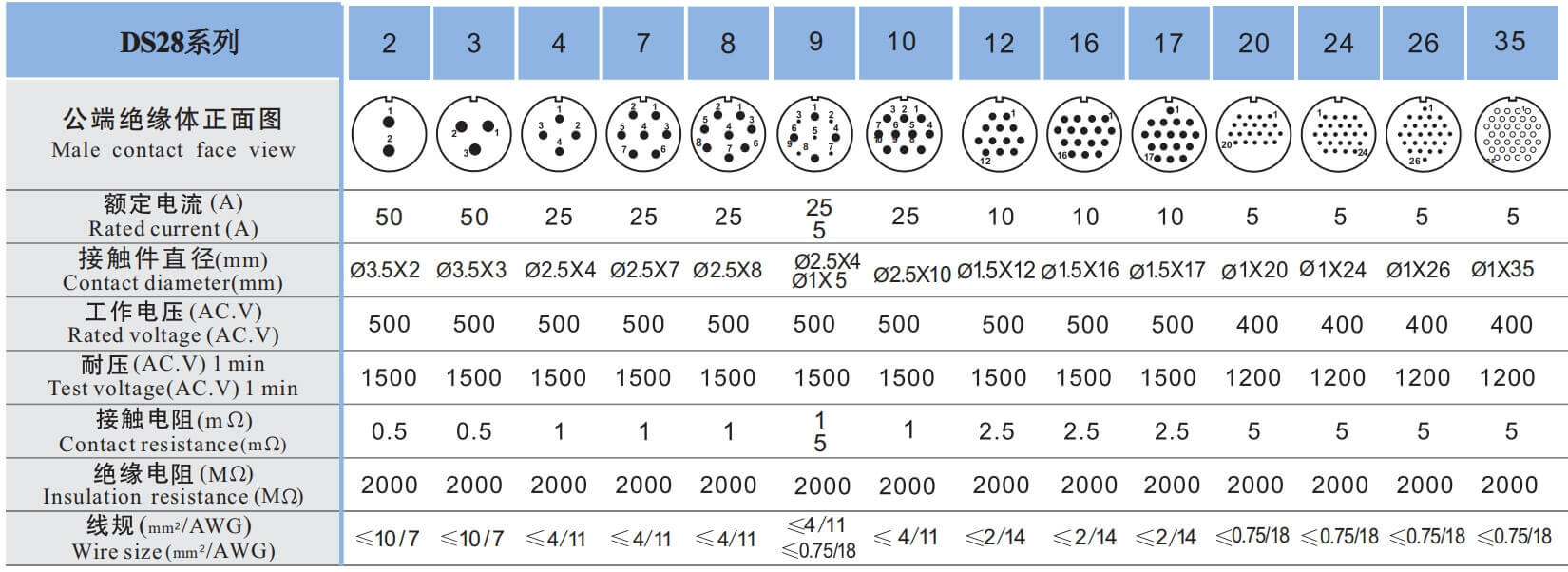

Welding core count parameter table
